SKU: AXK5070-MB

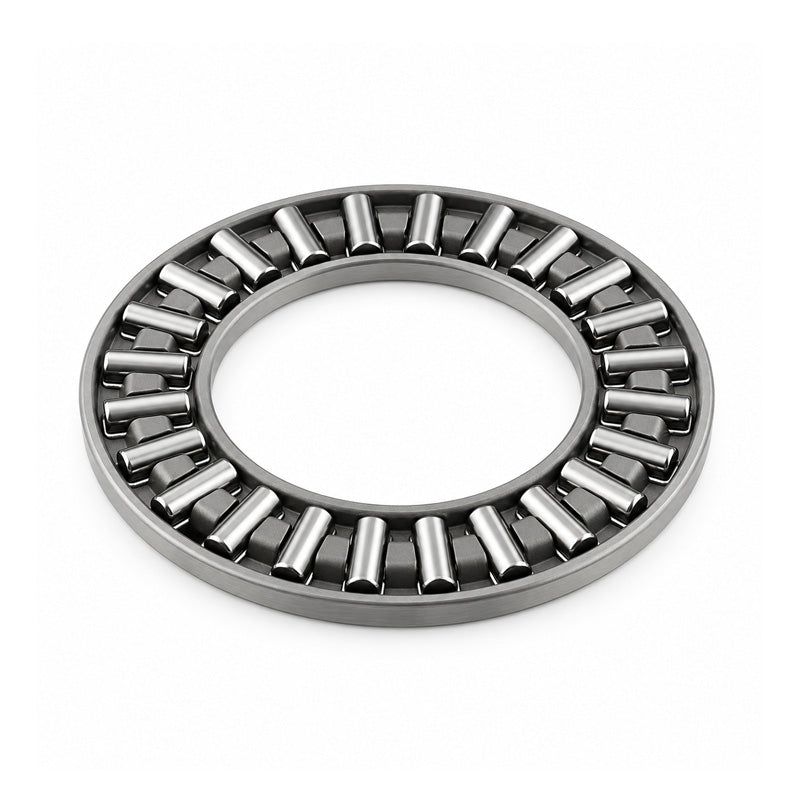

Major Brand AXK5070 Needle Roller Cage 50x70x3mm
Major Brand AXK5070 Needle Roller Cage 50x70x3mm
Regular price
£5.90
ex VAT£7.08inc. VAT
Regular price
Sale price
£5.90
ex VAT£7.08
inc. VAT
In stock
Price Break
10+
£5.25
19+
£4.96
29+
£4.90
39+
£4.84
49+
£4.78
74+
£4.72
99+
£4.43
199+
£4.37
249+
£4.31
499+
£4.25
999+
£4.13
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 70mm
- Width:
- 3mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 70mm |
| Dw | 3mm |
| Ea | 55mm |
| Eb | 68mm |
| Dynamic load | 28500 N |
| Static load | 143000 N |
| Fatigue load limit Pu | 17000 N |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| Weight (assembly) | 20 g |
| d1 | 70mm |
| D | 70mm |
| D1 | 52mm |
| B | 4mm |
