SKU: AXK5070-EU

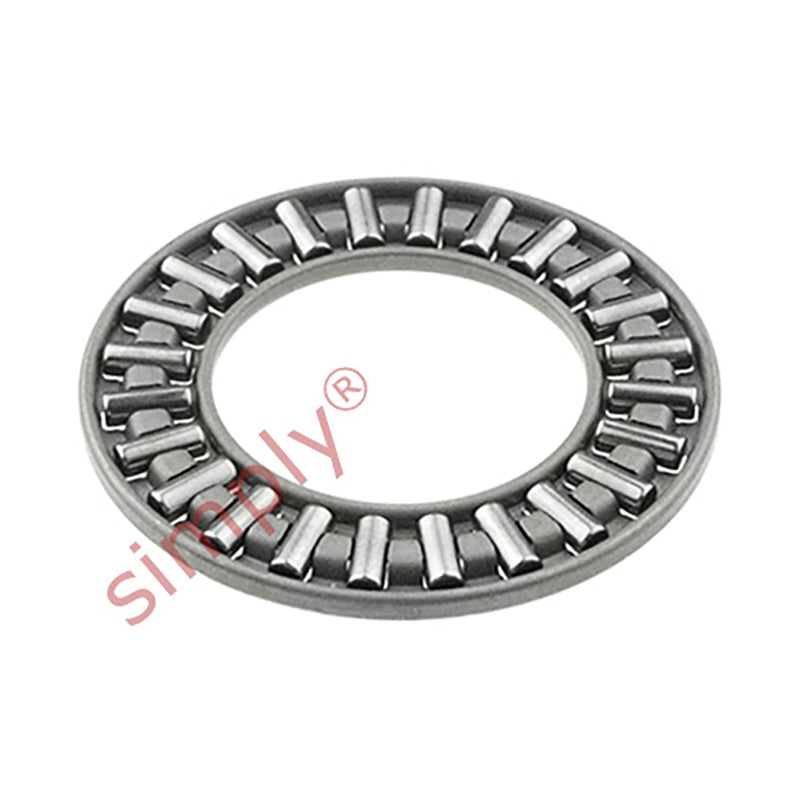

AXK5070 Budget Needle Roller Cage Only 50x70x3mm
AXK5070 Budget Needle Roller Cage Only 50x70x3mm
Regular price
£3.54
ex VAT£4.25inc. VAT
Regular price
Sale price
£3.54
ex VAT£4.25
inc. VAT
In stock
Price Break
10+
£3.15
19+
£2.98
29+
£2.94
39+
£2.90
49+
£2.87
74+
£2.83
99+
£2.66
199+
£2.62
249+
£2.59
499+
£2.55
999+
£2.48
Description
Description
|
Budget AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 70mm
- Width:
- 3mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 70mm |
| Dw | 3mm |
| Ea | 55mm |
| Eb | 68mm |
| Dynamic load C | 28500 N |
| Static load Co | 143000 N |
| Fatigue load limit Pu | 17000 N |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| Weight (Assembly) | 20 g |
| d1 | 70mm |
| D | 70mm |
| D1 | 52mm |
| B | 4mm |
| r1r2 min | 0.6mm |
| Weight LS GS WS | 55 g |
| Weight AS | 14 g |
| Raceway washer | LS5070 |
| Thrust washer | AS5070 |
| Shaft washer | WS81110 |
| Housing washer | GS81110 |
