SKU: AXK4060-EU-AS4060-EU

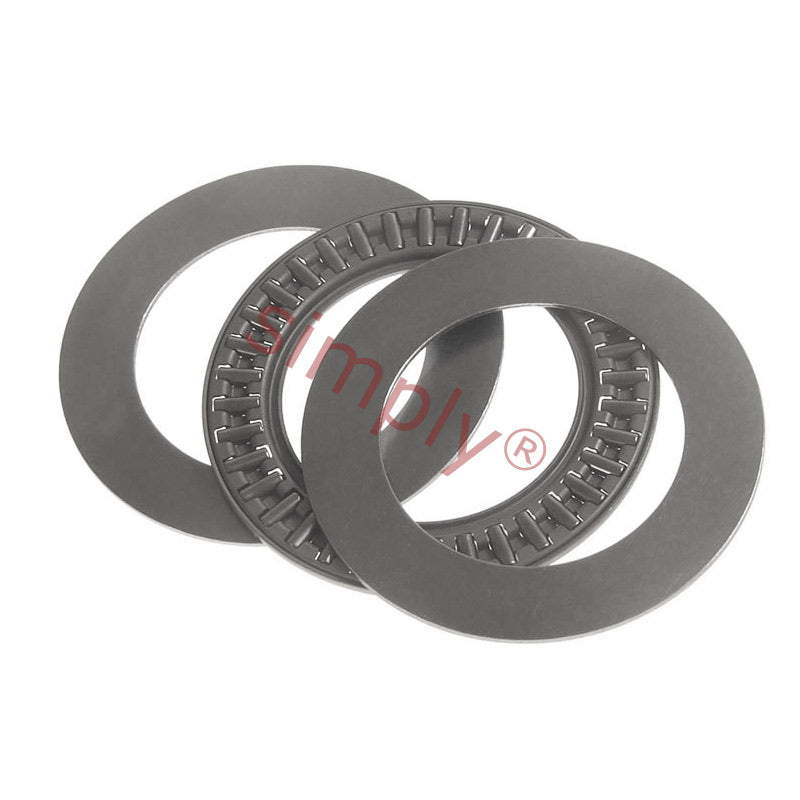

AXK4060/AS4060 Budget Needle Roller Cage with 2 AS Washers 40x60x5mm
AXK4060/AS4060 Budget Needle Roller Cage with 2 AS Washers 40x60x5mm
Regular price
£5.64
ex VAT£6.77inc. VAT
Regular price
Sale price
£5.64
ex VAT£6.77
inc. VAT
In stock
Price Break
10+
£5.02
19+
£4.74
29+
£4.68
39+
£4.62
49+
£4.57
74+
£4.51
99+
£4.23
199+
£4.17
249+
£4.12
499+
£4.06
999+
£3.95
Couldn't load pickup availability
Description
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 60mm
- Width:
- 5mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 60mm |
| Dw | 5mm |
| Ea | 45mm |
| Eb | 58mm |
| Dynamic load C | 25000 N |
| Static load Co | 114000 N |
| Fatigue load limit Pu | 13700 N |
| Speed in grease | 1700 rpm |
| Speed in oil | 2400 rpm |
| Weight (Assembly) | 16 g |
| d1 | 60mm |
| D | 60mm |
| D1 | 42mm |
| B | 3.5mm |
| r1r2 min | 0.6mm |
| Weight LS GS WS | 40 g |
| Weight AS | 12 g |
| Raceway washer | LS4060 |
| Thrust washer | AS4060 |
| Shaft washer | WS81108 |
| Housing washer | GS81108 |
