SKU: AXK3552-MB

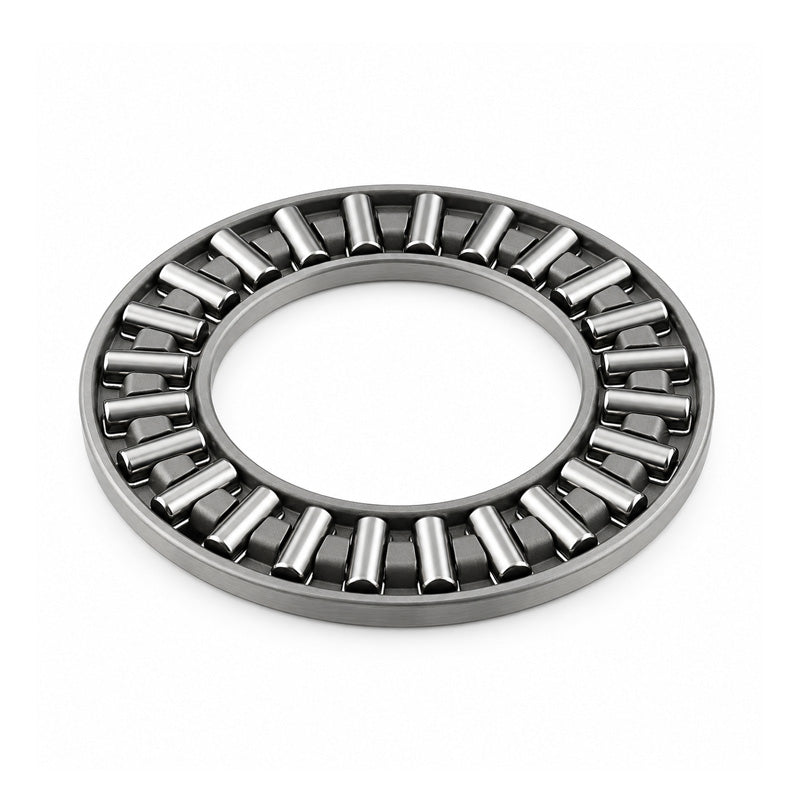

Major Brand AXK3552 Needle Roller Cage 35x52x2mm
Major Brand AXK3552 Needle Roller Cage 35x52x2mm
Regular price
£3.96
ex VAT£4.75inc. VAT
Regular price
Sale price
£3.96
ex VAT£4.75
inc. VAT
In stock
Price Break
10+
£3.52
19+
£3.32
29+
£3.28
39+
£3.25
49+
£3.21
74+
£3.17
99+
£2.97
199+
£2.93
249+
£2.89
499+
£2.85
999+
£2.77
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 52mm
- Width:
- 2mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 52mm |
| Dw | 2mm |
| Ea | 39mm |
| Eb | 51mm |
| Dynamic load | 16600 N |
| Static load | 83000 N |
| Fatigue load limit Pu | 9300 N |
| Speed in grease | 1900 rpm |
| Speed in oil | 2800 rpm |
| Weight (assembly) | 10 g |
| d1 | 52mm |
| D | 52mm |
| D1 | 37mm |
| B | 3.5mm |
