SKU: AXK2035-MB

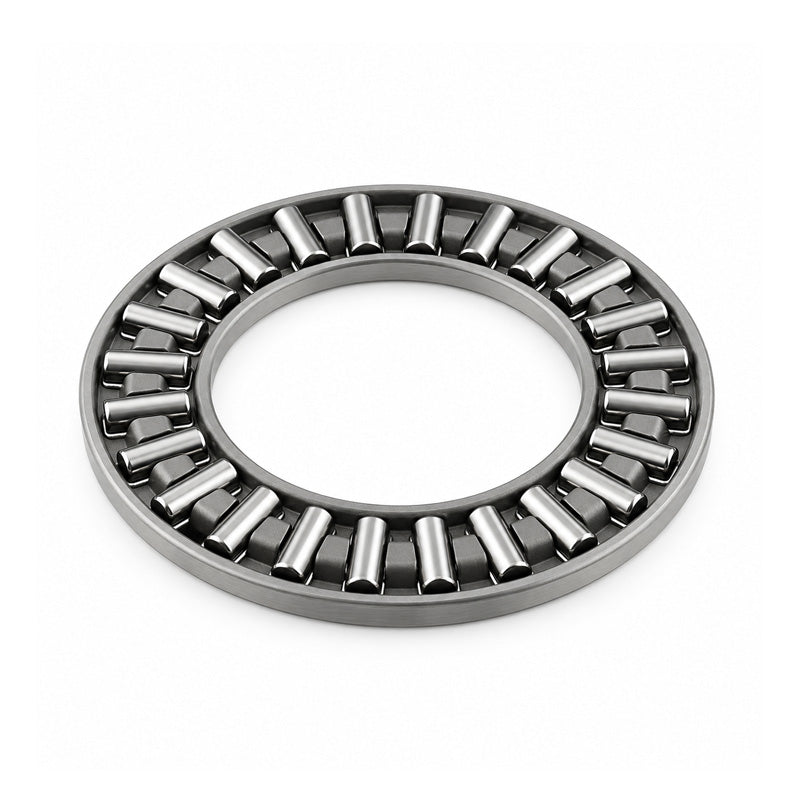

Major Brand AXK2035 Needle Roller Cage 20x35x2mm
Major Brand AXK2035 Needle Roller Cage 20x35x2mm
Regular price
£2.88
ex VAT£3.46inc. VAT
Regular price
Sale price
£2.88
ex VAT£3.46
inc. VAT
In stock
Price Break
10+
£2.56
19+
£2.42
29+
£2.39
39+
£2.36
49+
£2.33
74+
£2.30
99+
£2.16
199+
£2.13
249+
£2.10
499+
£2.07
999+
£2.02
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 2mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 35mm |
| Dw | 2mm |
| Ea | 22mm |
| Eb | 34mm |
| Dynamic load | 12000 N |
| Static load | 47500 N |
| Fatigue load limit Pu | 5300 N |
| Speed in grease | 2800 rpm |
| Speed in oil | 3800 rpm |
| Weight (assembly) | 5 g |
| d1 | 35mm |
| D | 35mm |
| D1 | 21mm |
| B | 2.75mm |
