SKU: AXK140180-MB

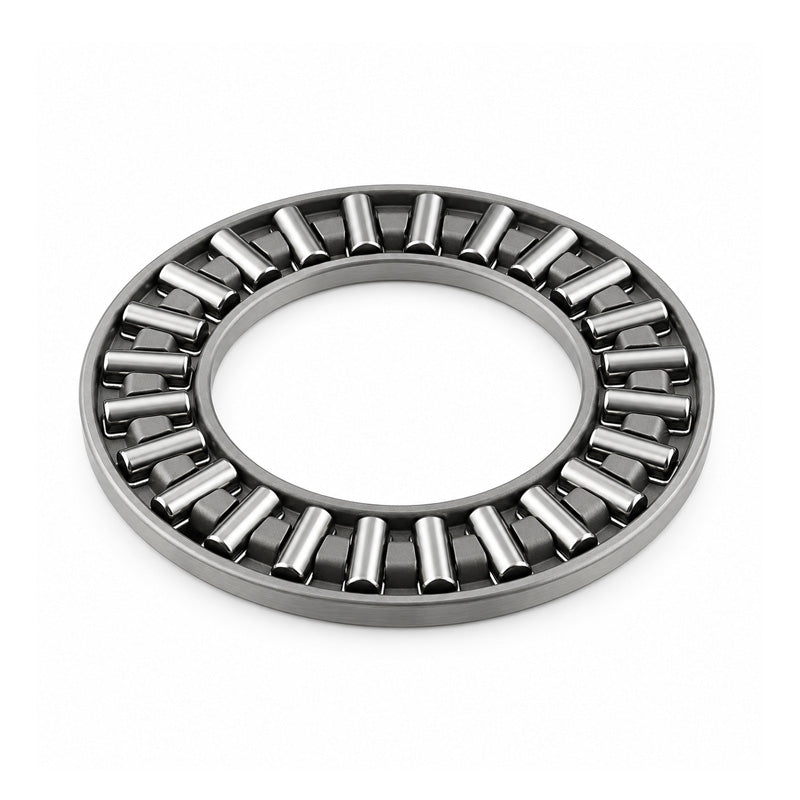

Major Brand AXK140180 Needle Roller Cage 140x180x5mm
Major Brand AXK140180 Needle Roller Cage 140x180x5mm
Regular price
£27.10
ex VAT£32.52inc. VAT
Regular price
Sale price
£27.10
ex VAT£32.52
inc. VAT
In stock
Price Break
10+
£24.12
19+
£22.76
29+
£22.49
39+
£22.22
49+
£21.95
74+
£21.68
99+
£20.33
199+
£20.05
249+
£19.78
499+
£19.51
999+
£18.97
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 180mm
- Width:
- 5mm
Technical
Technical
| d | 140mm |
|---|---|
| D | 180mm |
| Dw | 5mm |
| Ea | 146mm |
| Eb | 177mm |
| Dynamic load | 116000 N |
| Static load | 900000 N |
| Fatigue load limit Pu | 98600 N |
| Speed in grease | 670 rpm |
| Speed in oil | 900 rpm |
| Weight (assembly) | 220 g |
| d1 | 178mm |
| D | 180mm |
| D1 | 142mm |
| B | 9.5mm |
