SKU: AXK130170-EU

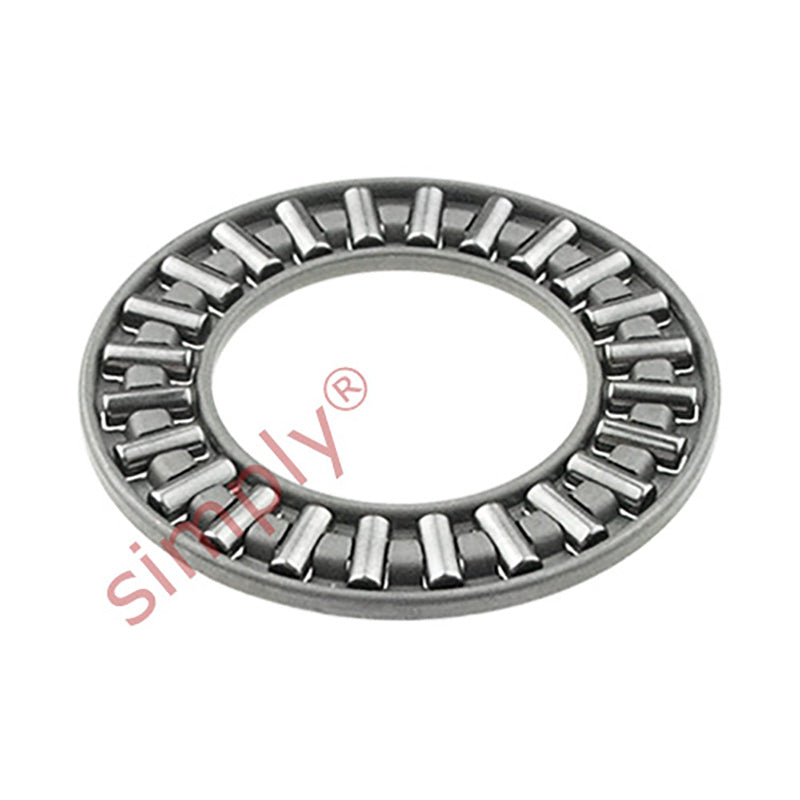

AXK130170 Budget Needle Roller Cage Only 130x170x5mm
AXK130170 Budget Needle Roller Cage Only 130x170x5mm
Regular price
£11.25
ex VAT£13.50inc. VAT
Regular price
Sale price
£11.25
ex VAT£13.50
inc. VAT
In stock
Price Break
10+
£10.01
19+
£9.45
29+
£9.34
39+
£9.23
49+
£9.11
74+
£9.00
99+
£8.44
199+
£8.33
249+
£8.21
499+
£8.10
999+
£7.88
Description
Description
|
Budget AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 170mm
- Width:
- 5mm
Technical
Technical
| d | 130mm |
|---|---|
| D | 170mm |
| Dw | 5mm |
| Ea | 136mm |
| Eb | 167mm |
| Dynamic load C | 112000 N |
| Static load Co | 830000 N |
| Fatigue load limit Pu | 93000 N |
| Speed in grease | 700 rpm |
| Speed in oil | 950 rpm |
| Weight (Assembly) | 205 g |
| d1 | 170mm |
| D | 170mm |
| D1 | 132mm |
| B | 9mm |
| r1r2 min | 1mm |
| Weight LS GS WS | 665 g |
| Weight AS | 65 g |
| Raceway washer | LS130170 |
| Thrust washer | AS130170 |
| Shaft washer | WS81126 |
| Housing washer | GS81126 |
