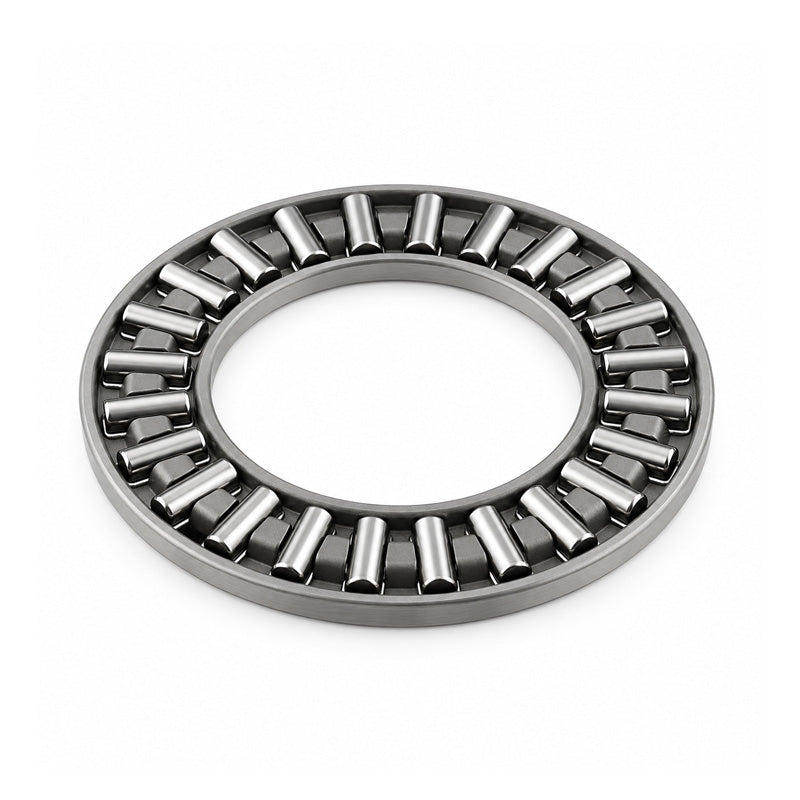

Major Brand AXK1226 Needle Roller Cage 12x26x2mm
Major Brand AXK1226 Needle Roller Cage 12x26x2mm
Regular price
£3.88
ex VAT£4.66inc. VAT
Regular price
Sale price
£3.88
ex VAT£4.66
inc. VAT
In stock
Price Break
10+
£3.46
19+
£3.26
29+
£3.22
39+
£3.18
49+
£3.15
74+
£3.11
99+
£2.91
199+
£2.87
249+
£2.84
499+
£2.80
999+
£2.72
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 26mm
- Width:
- 2mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 26mm |
| Dw | 2mm |
| Ea | 14mm |
| Eb | 20mm |
| Dynamic load | 9150 N |
| Static load | 30000 N |
| Fatigue load limit Pu | 3250 N |
| Speed in grease | 3400 rpm |
| Speed in oil | 4500 rpm |
| Weight (assembly) | 3 g |
| D | 26mm |
| B | 2.75mm |
