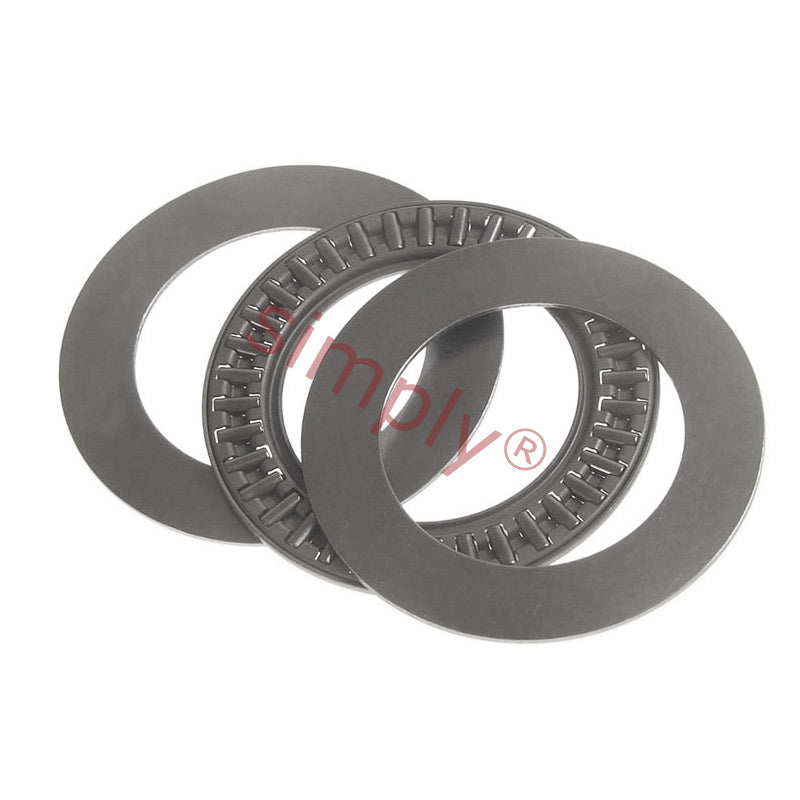

AXK1226/AS1226 Budget Needle Roller Cage with 2 AS Washers 12x26x4mm
AXK1226/AS1226 Budget Needle Roller Cage with 2 AS Washers 12x26x4mm
Regular price
£3.04
ex VAT£3.65inc. VAT
Regular price
Sale price
£3.04
ex VAT£3.65
inc. VAT
In stock
Price Break
10+
£2.71
19+
£2.55
29+
£2.52
39+
£2.49
49+
£2.46
74+
£2.43
99+
£2.28
199+
£2.25
249+
£2.22
499+
£2.19
999+
£2.13
Couldn't load pickup availability
Description
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 26mm
- Width:
- 4mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 26mm |
| Dw | 4mm |
| Ea | 14mm |
| Eb | 20mm |
| Dynamic load C | 9150 N |
| Static load Co | 30000 N |
| Fatigue load limit Pu | 3250 N |
| Speed in grease | 3400 rpm |
| Speed in oil | 4500 rpm |
| Weight (Assembly) | 3 g |
| D | 26mm |
| B | 2.75mm |
| r1r2 min | 0.3mm |
| Weight LS GS WS | 8 g |
| Weight AS | 3 g |
| Raceway washer | LS1226 |
| Thrust washer | AS1226 |
