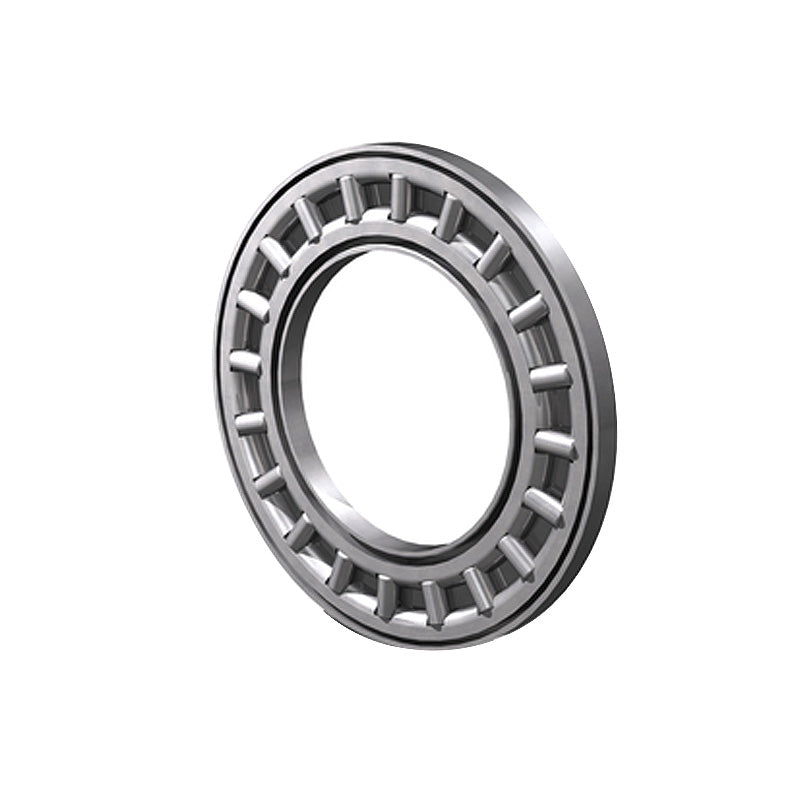

NTN AXK1126 Needle Roller Cage Only 130x170x5mm - Allow 2-3 Days
NTN AXK1126 Needle Roller Cage Only 130x170x5mm - Allow 2-3 Days
Regular price
£55.33
ex VAT£66.40inc. VAT
Regular price
Sale price
£55.33
ex VAT£66.40
inc. VAT
In stock
Price Break
3+
£54.78
4+
£52.56
9+
£51.46
19+
£49.80
49+
£48.69
99+
£45.92
499+
£38.73
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 170mm
- Width:
- 5mm
Technical
Technical
| Dc1 - Inside diameter | 130mm |
|---|---|
| Dc - Outside diameter | 170mm |
| Dw - Roller Width | 5mm |
| AS washer reference | AS1126 |
| WS inner ring reference | WS81126 |
| GS outer ring reference | GS81126 |
| Ea - Rollers reference outer diameter | 164mm |
| Eb - Rollers reference inner diameter | 136mm |
| Ca - Dynamic axial load rating | 140 kN |
| C0a - Static axial load rating | 900 kN |
| Cua - Limit axial load rating | 97 kN |
| Grease lubrication limit speed | 400 tr/min |
| Oil lubrication limit speed | 1600 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
