SKU: AXK1104-NTN

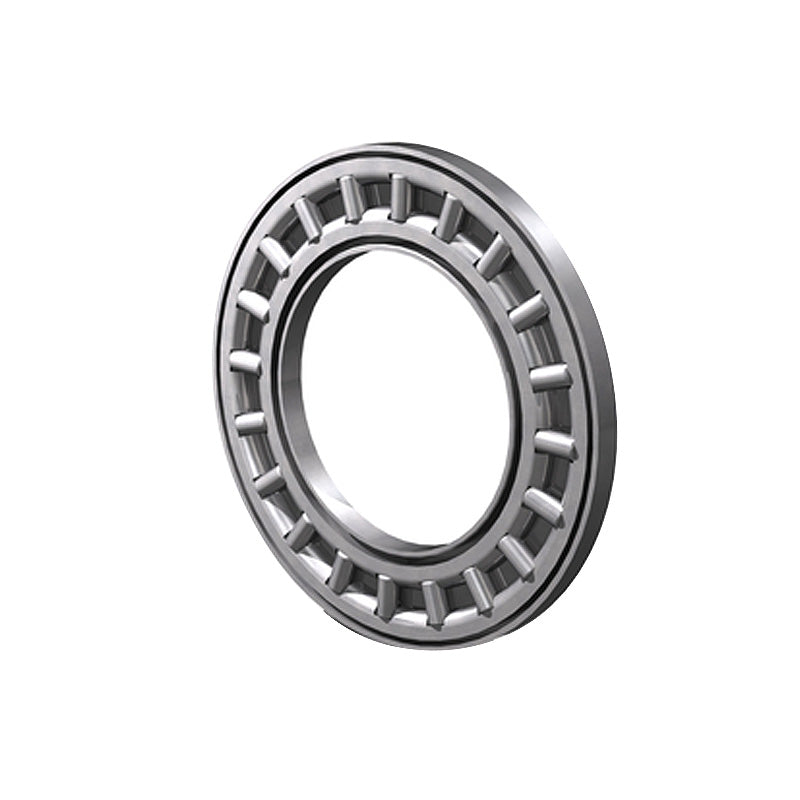

NTN AXK1104 Needle Roller Cage Only 20x35x2mm - Allow 2-3 Days
NTN AXK1104 Needle Roller Cage Only 20x35x2mm - Allow 2-3 Days
Regular price
£4.25
ex VAT£5.10inc. VAT
Regular price
Sale price
£4.25
ex VAT£5.10
inc. VAT
Low stock
Price Break
3+
£3.78
4+
£3.57
9+
£3.53
19+
£3.49
49+
£3.44
99+
£3.40
499+
£3.19
999+
£3.15
1999+
£3.10
2999+
£3.06
4999+
£2.98
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 2mm
Technical
Technical
| Dc1 - Inside diameter | 20mm |
|---|---|
| Dc - Outside diameter | 35mm |
| Dw - Roller Width | 2mm |
| AS washer reference | AS1104 |
| WS inner ring reference | WS81104 |
| GS outer ring reference | GS81104 |
| Ea - Rollers reference outer diameter | 31.3mm |
| Eb - Rollers reference inner diameter | 21.3mm |
| Ca - Dynamic axial load rating | 13.2 kN |
| C0a - Static axial load rating | 46.5 kN |
| Cua - Limit axial load rating | 5.65 kN |
| Grease lubrication limit speed | 2100 tr/min |
| Oil lubrication limit speed | 8500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
