SKU: AXK1102-NTN

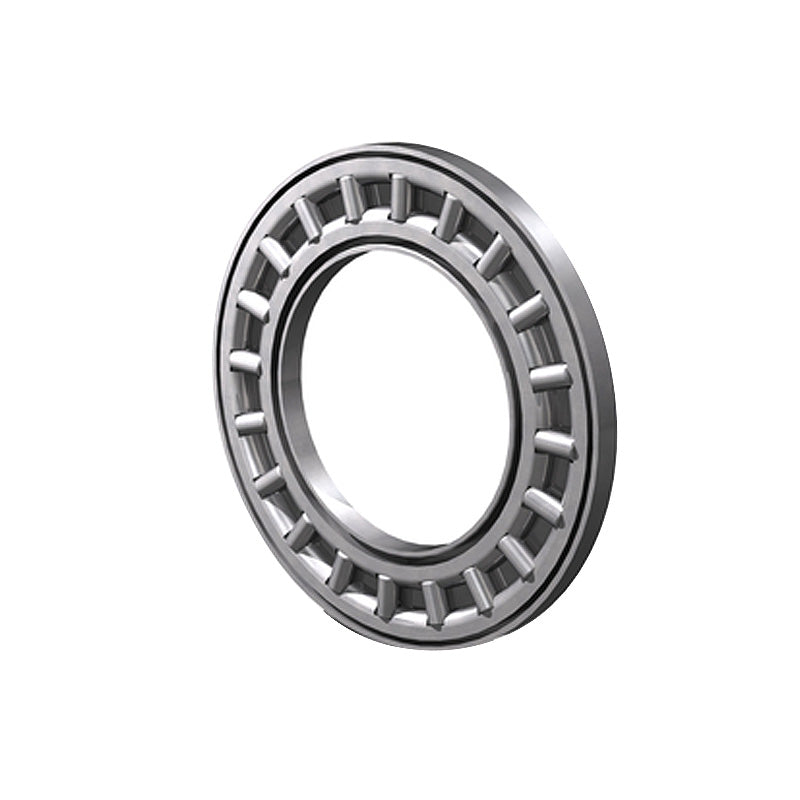

NTN AXK1102 Needle Roller Cage Only 15x28x2mm - Allow 2-3 Days
NTN AXK1102 Needle Roller Cage Only 15x28x2mm - Allow 2-3 Days
Regular price
£4.09
ex VAT£4.91inc. VAT
Regular price
Sale price
£4.09
ex VAT£4.91
inc. VAT
Low stock
Price Break
3+
£3.64
4+
£3.44
9+
£3.39
19+
£3.35
49+
£3.31
99+
£3.27
499+
£3.07
999+
£3.03
1999+
£2.99
2999+
£2.94
4999+
£2.86
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 2mm
Technical
Technical
| Dc1 - Inside diameter | 15mm |
|---|---|
| Dc - Outside diameter | 28mm |
| Dw - Roller Width | 2mm |
| AS washer reference | AS1102 |
| WS inner ring reference | WS81102 |
| GS outer ring reference | GS81102 |
| Ea - Rollers reference outer diameter | 26.5mm |
| Eb - Rollers reference inner diameter | 17.2mm |
| Ca - Dynamic axial load rating | 11.3 kN |
| C0a - Static axial load rating | 36 kN |
| Cua - Limit axial load rating | 4.4 kN |
| Grease lubrication limit speed | 2800 tr/min |
| Oil lubrication limit speed | 11000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
