SKU: AXK1024-MB

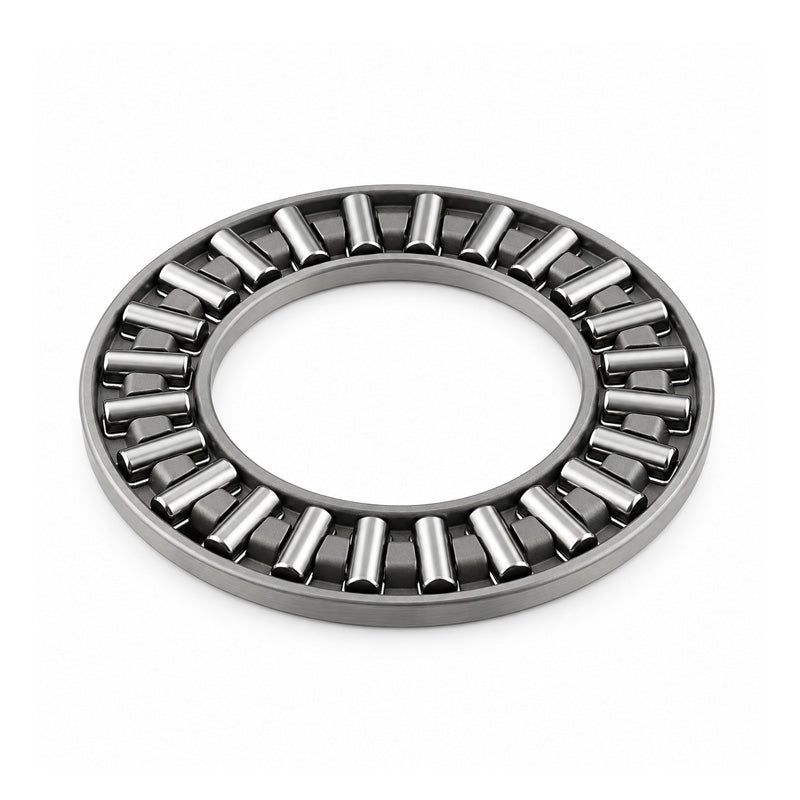

Major Brand AXK1024 Needle Roller Cage 10x24x2mm
Major Brand AXK1024 Needle Roller Cage 10x24x2mm
Regular price
£3.83
ex VAT£4.60inc. VAT
Regular price
Sale price
£3.83
ex VAT£4.60
inc. VAT
In stock
Price Break
10+
£3.41
19+
£3.22
29+
£3.18
39+
£3.14
49+
£3.10
74+
£3.07
99+
£2.87
199+
£2.84
249+
£2.80
499+
£2.76
999+
£2.68
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 24mm
- Width:
- 2mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 24mm |
| Dw | 2mm |
| Ea | 12mm |
| Eb | 23mm |
| Dynamic load | 8500 N |
| Static load | 26000 N |
| Fatigue load limit Pu | 2850 N |
| Speed in grease | 3600 rpm |
| Speed in oil | 4800 rpm |
| Weight (assembly) | 3 g |
| D | 24mm |
| B | 2.75mm |
