SKU: AXK100135-EU

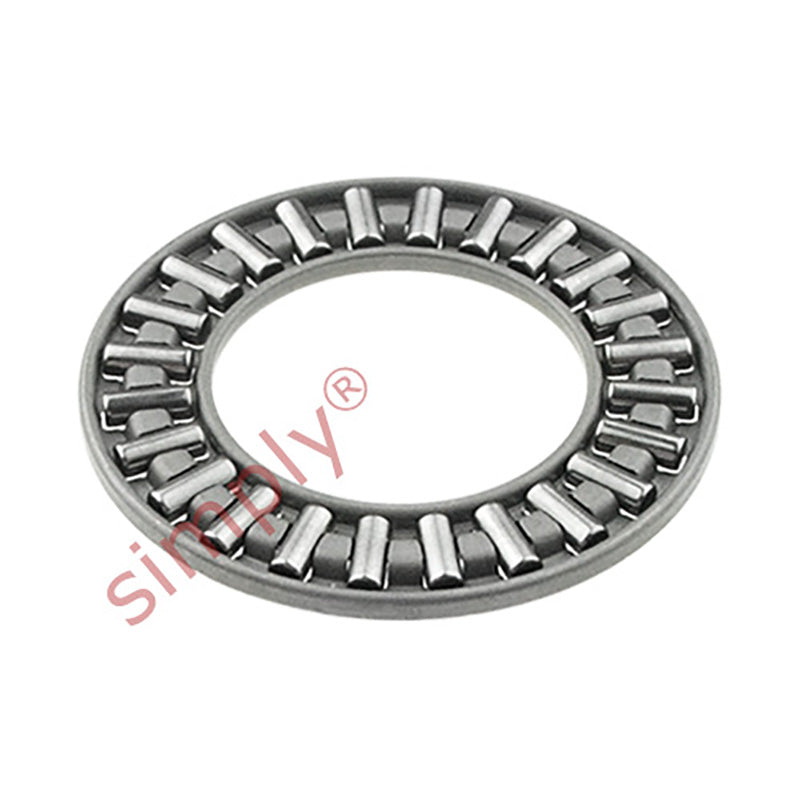

AXK100135 Budget Needle Roller Cage Only 100x135x4mm
AXK100135 Budget Needle Roller Cage Only 100x135x4mm
Regular price
£7.72
ex VAT£9.26inc. VAT
Regular price
Sale price
£7.72
ex VAT£9.26
inc. VAT
In stock
Price Break
10+
£6.87
19+
£6.48
29+
£6.41
39+
£6.33
49+
£6.25
74+
£6.18
99+
£5.79
199+
£5.71
249+
£5.64
499+
£5.56
999+
£5.40
Couldn't load pickup availability
Description
Description
|
Budget AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 135mm
- Width:
- 4mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 135mm |
| Dw | 4mm |
| Ea | 105mm |
| Eb | 133mm |
| Dynamic load C | 76500 N |
| Static load Co | 560000 N |
| Fatigue load limit Pu | 65500 N |
| Speed in grease | 850 rpm |
| Speed in oil | 1200 rpm |
| Weight (Assembly) | 105 g |
| d1 | 135mm |
| D | 135mm |
| D1 | 102mm |
| B | 7mm |
| r1r2 min | 1mm |
| Weight LS GS WS | 350 g |
| Weight AS | 50 g |
| Raceway washer | LS100135 |
| Thrust washer | AS100135 |
| Shaft washer | WS81120 |
| Housing washer | GS81120 |
