SKU: AXK0821-EU

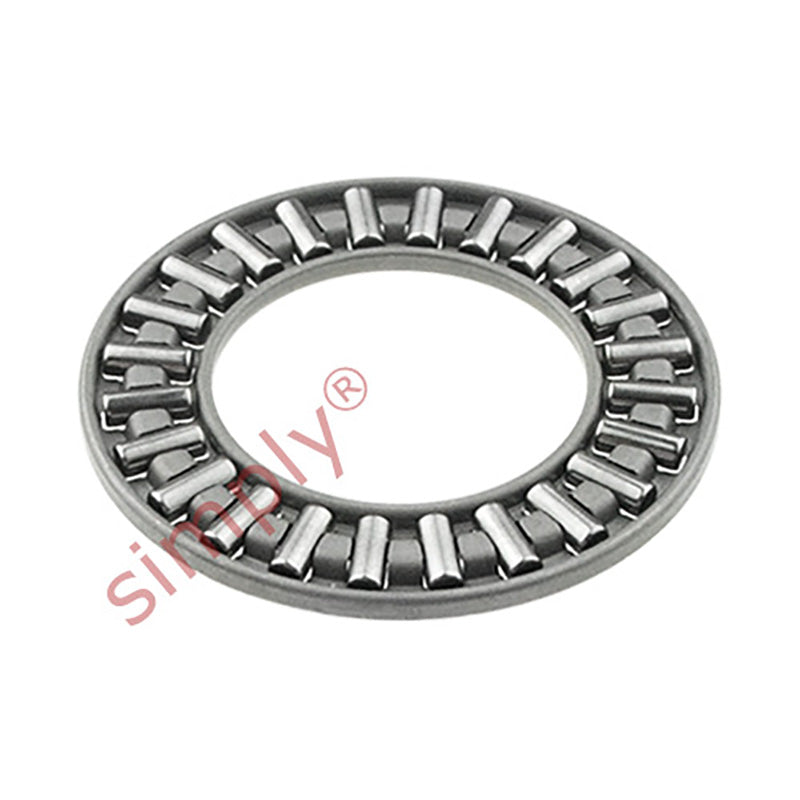

AXK0821 Budget Needle Roller Cage Only 8x21x2mm
AXK0821 Budget Needle Roller Cage Only 8x21x2mm
Regular price
£2.56
ex VAT£3.07inc. VAT
Regular price
Sale price
£2.56
ex VAT£3.07
inc. VAT
In stock
Price Break
10+
£2.28
19+
£2.15
29+
£2.13
39+
£2.10
49+
£2.07
74+
£2.05
99+
£1.92
199+
£1.89
249+
£1.87
499+
£1.84
999+
£1.79
Description
Description
|
Budget AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 21mm
- Width:
- 2mm
Technical
Technical
| d | 8mm |
|---|---|
| D | 21mm |
| Dw | 2mm |
| Ea | 9mm |
| Eb | 20mm |
| Dynamic load C | 7200 N |
| Static load Co | 20000 N |
| Fatigue load limit Pu | 2200 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 5600 rpm |
| Weight (Assembly) | 2 g |
| D | 21mm |
| B | 2.75mm |
| r1r2 min | 0.3mm |
| Weight LS GS WS | 4 g |
| Weight AS | 2 g |
| Raceway washer | LS0821 |
| Thrust washer | AS0821 |
