SKU: AX715-MB

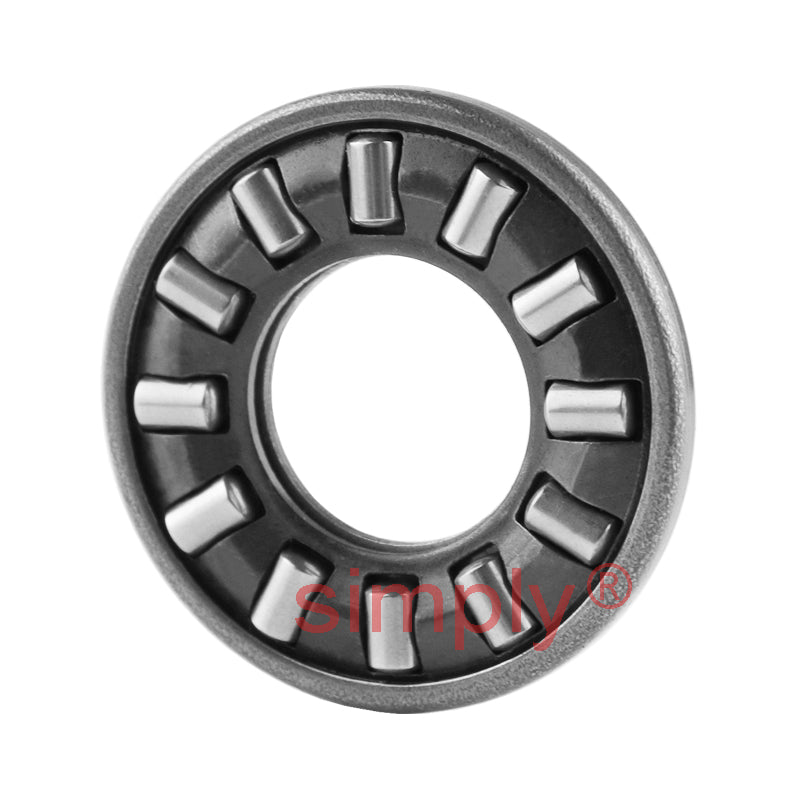

Major Brand AX715 Thin Needle Roller Thrust Bearing 7x15x2.3mm
Major Brand AX715 Thin Needle Roller Thrust Bearing 7x15x2.3mm
Regular price
£26.68
ex VAT£32.02inc. VAT
Regular price
Sale price
£26.68
ex VAT£32.02
inc. VAT
In stock
Price Break
10+
£23.75
19+
£22.41
29+
£22.14
39+
£21.88
49+
£21.61
74+
£21.34
99+
£20.01
199+
£19.74
249+
£19.48
499+
£19.21
999+
£18.68
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 15mm
- Width:
- 2.3mm
Technical
Technical
| Dc1 | 7mm |
|---|---|
| D | 15mm |
| B1 | 2.3mm |
| Eb | 8.3mm |
| Ea | 12.9mm |
| Dynamic load | 3.55 kN |
| Static load | 7.6 kN |
| Speed rating in oil | 22000 rpm |
| Mass | 0.002 kg |
