SKU: AX53553-NADELLA

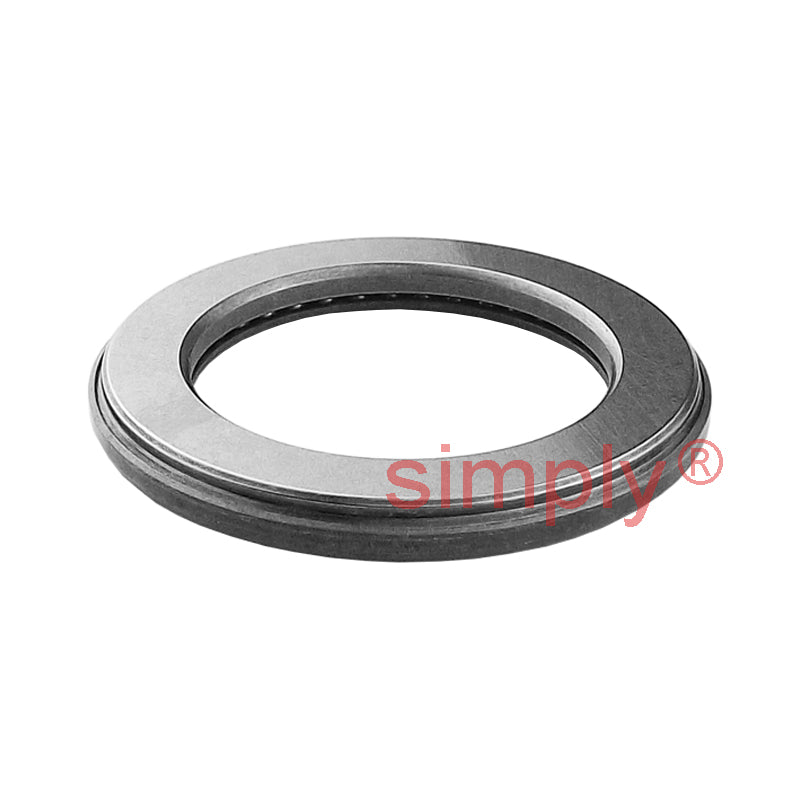

Nadella AX53553 Thick Needle Roller Thrust Bearing 35x53x5mm Allow 2-3 Days
Nadella AX53553 Thick Needle Roller Thrust Bearing 35x53x5mm Allow 2-3 Days
Regular price
£44.32
ex VAT£53.18inc. VAT
Regular price
Sale price
£44.32
ex VAT£53.18
inc. VAT
In stock
Price Break
5+
£43.88
10+
£42.10
20+
£41.22
50+
£39.89
100+
£39.00
500+
£36.79
1000+
£31.02
Couldn't load pickup availability
Description
Description

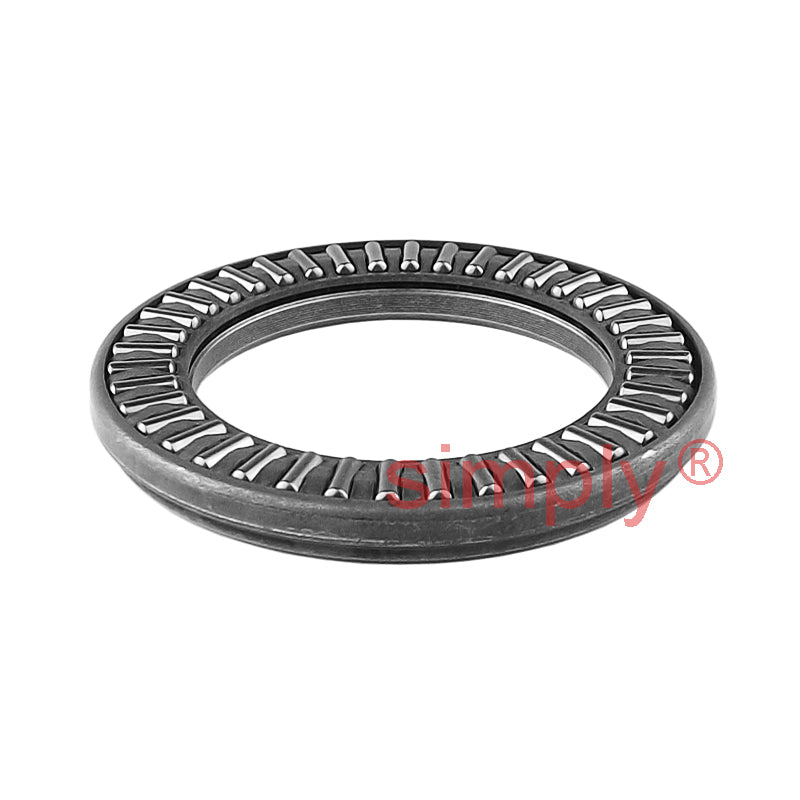

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 53mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 35mm |
|---|---|
| D | 53mm |
| B1 | 5mm |
| Eb | 37.2mm |
| Ea | 49mm |
| Dynamic load | 18.9 kN |
| Static load | 84 kN |
| Speed rating in oil | 5500 rpm |
| Mass | 0.036 kg |
