SKU: AX53552-MB

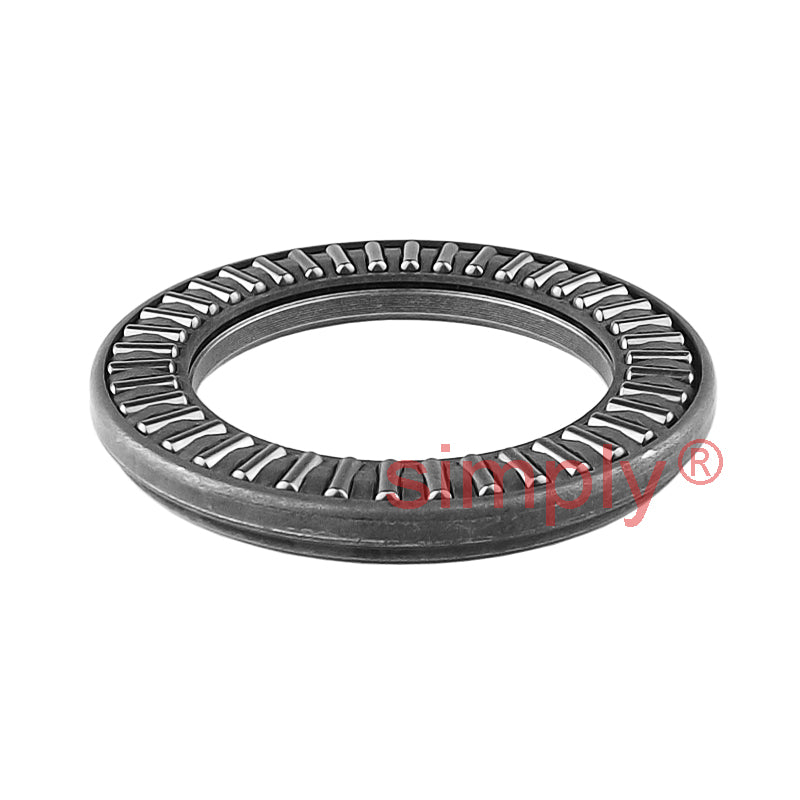

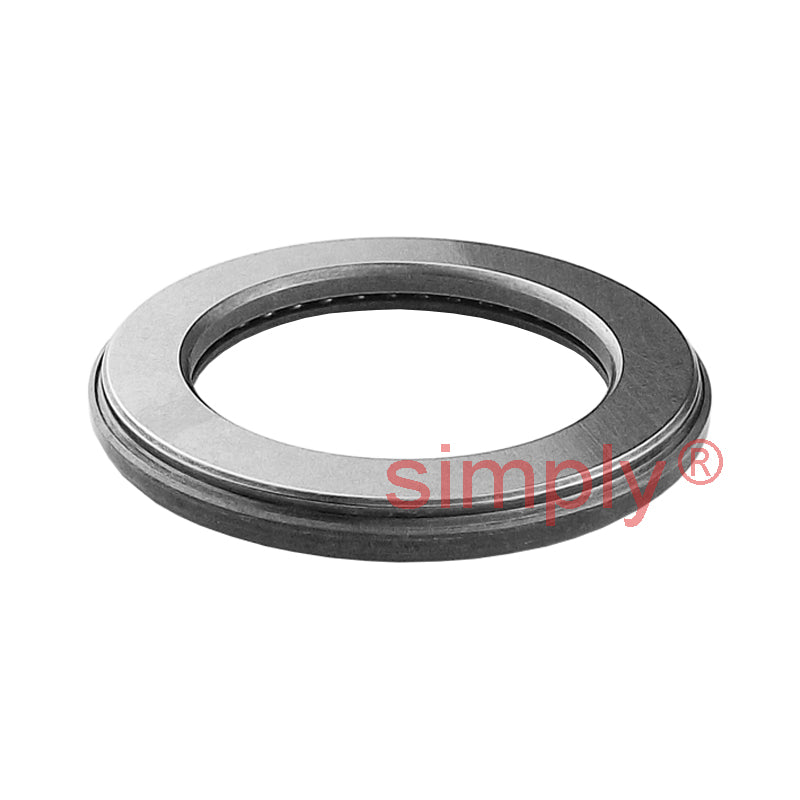

Major Brand AX53552 Thick Needle Roller Thrust Bearing 35x52x5mm
Major Brand AX53552 Thick Needle Roller Thrust Bearing 35x52x5mm
Regular price
£44.68
ex VAT£53.62inc. VAT
Regular price
Sale price
£44.68
ex VAT£53.62
inc. VAT
In stock
Price Break
10+
£39.77
19+
£37.53
29+
£37.08
39+
£36.64
49+
£36.19
74+
£35.74
99+
£33.51
199+
£33.06
249+
£32.62
499+
£32.17
999+
£31.28
Couldn't load pickup availability
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 52mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 35mm |
|---|---|
| D | 52mm |
| B1 | 5mm |
| Eb | 37.2mm |
| Ea | 49mm |
| Dynamic load | 18.9 kN |
| Static load | 84 kN |
| Speed rating in oil | 5500 rpm |
| Mass | 0.035 kg |
