SKU: AX53047-NADELLA

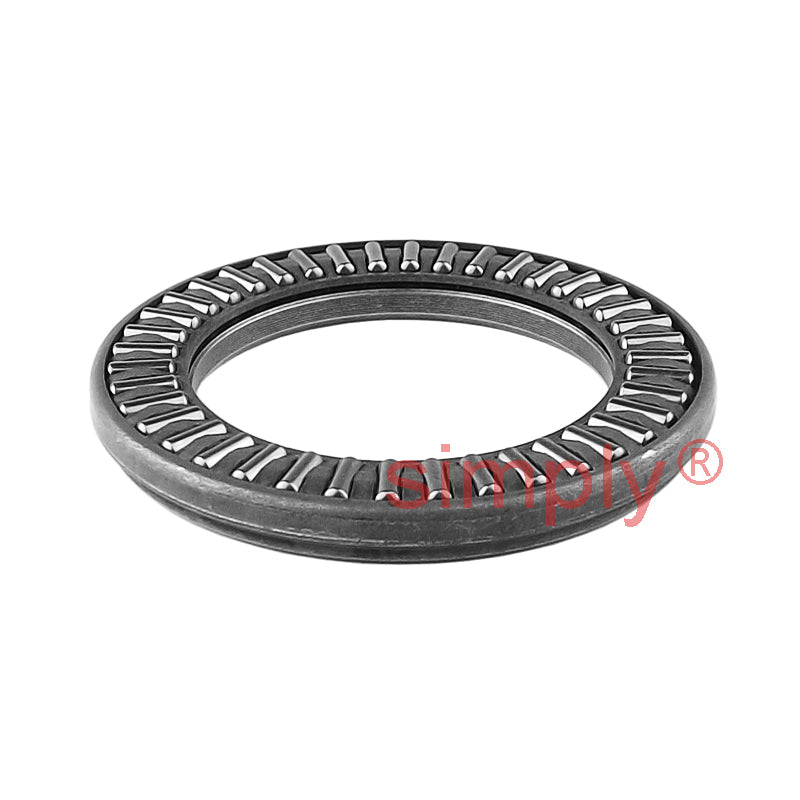

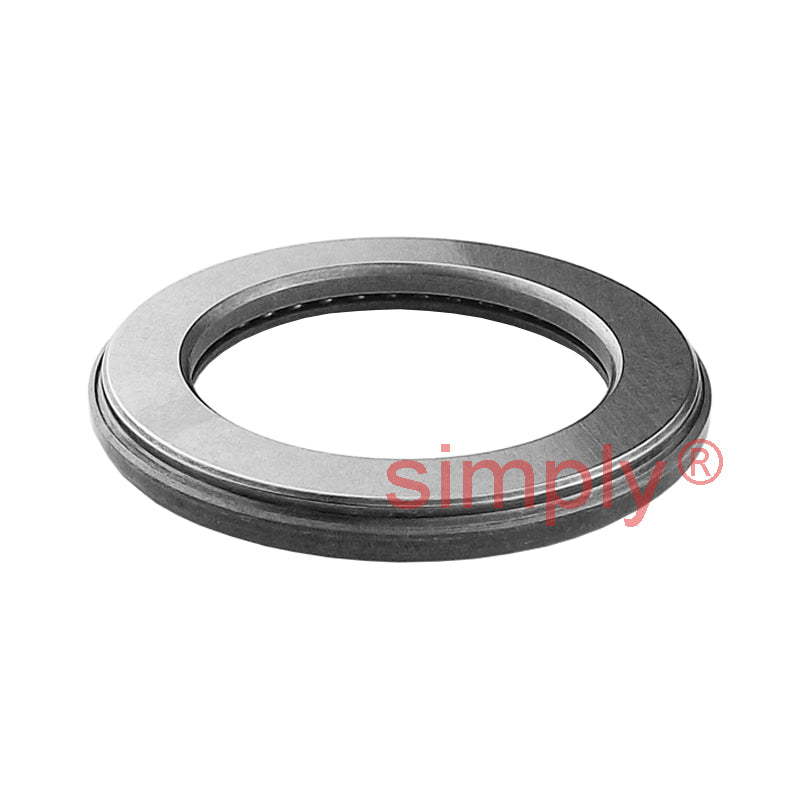

Nadella AX53047 Thick Needle Roller Thrust Bearing 30x47x5mm
Nadella AX53047 Thick Needle Roller Thrust Bearing 30x47x5mm
Regular price
£39.89
ex VAT£47.87inc. VAT
Regular price
Sale price
£39.89
ex VAT£47.87
inc. VAT
In stock
Price Break
5+
£39.49
10+
£37.90
20+
£37.10
50+
£35.90
100+
£35.10
500+
£33.11
1000+
£27.92
Couldn't load pickup availability
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 30mm |
|---|---|
| D | 47mm |
| B1 | 5mm |
| Eb | 32.7mm |
| Ea | 42.4mm |
| Dynamic load | 14.5 kN |
| Static load | 57 kN |
| Speed rating in oil | 6500 rpm |
| Mass | 0.029 kg |
