SKU: AX52542-MB

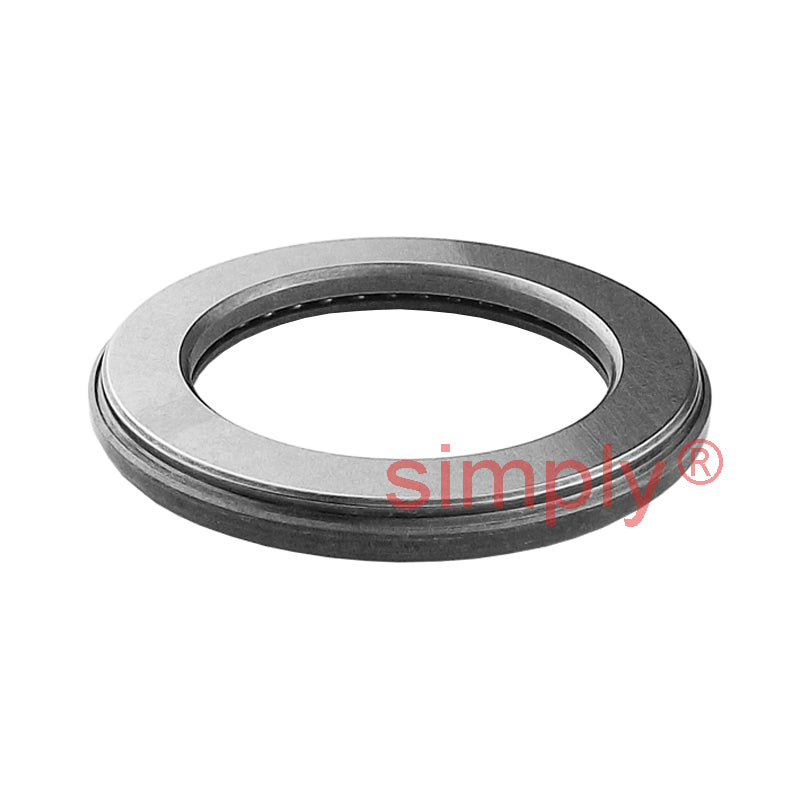

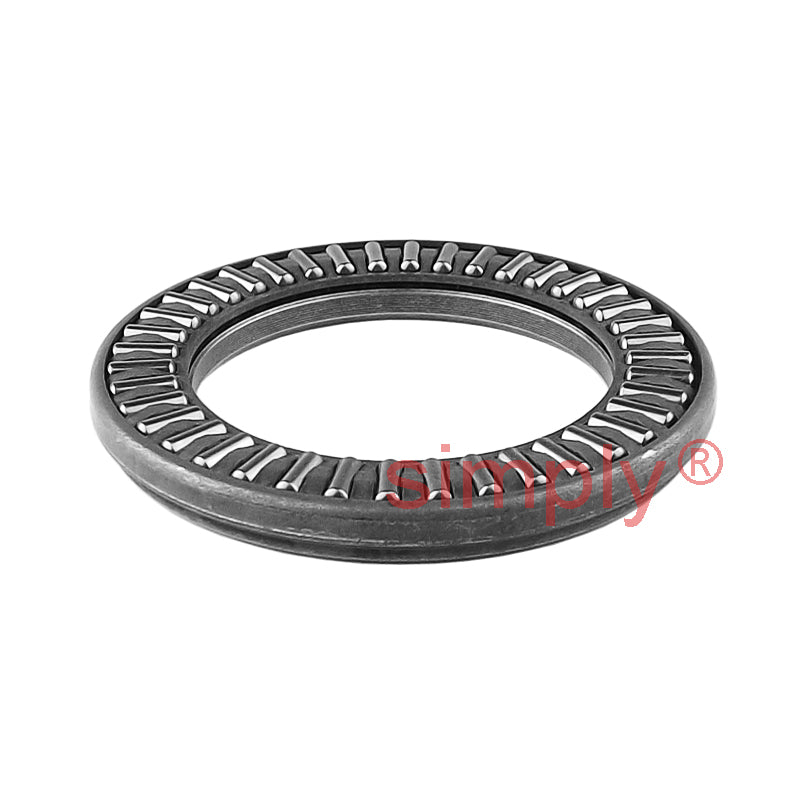

Major Brand AX52542 Thick Needle Roller Thrust Bearing 25x42x5mm
Major Brand AX52542 Thick Needle Roller Thrust Bearing 25x42x5mm
Regular price
£18.98
ex VAT£22.78inc. VAT
Regular price
Sale price
£18.98
ex VAT£22.78
inc. VAT
In stock
Price Break
10+
£16.89
19+
£15.94
29+
£15.75
39+
£15.56
49+
£15.37
74+
£15.18
99+
£14.24
199+
£14.05
249+
£13.86
499+
£13.67
999+
£13.29
Couldn't load pickup availability
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 25mm |
|---|---|
| D | 42mm |
| B1 | 5mm |
| Eb | 27.7mm |
| Ea | 37.4mm |
| Dynamic load | 13.3 kN |
| Static load | 49 kN |
| Speed rating in oil | 7500 rpm |
| Mass | 0.025 kg |
