SKU: AX5070-MB

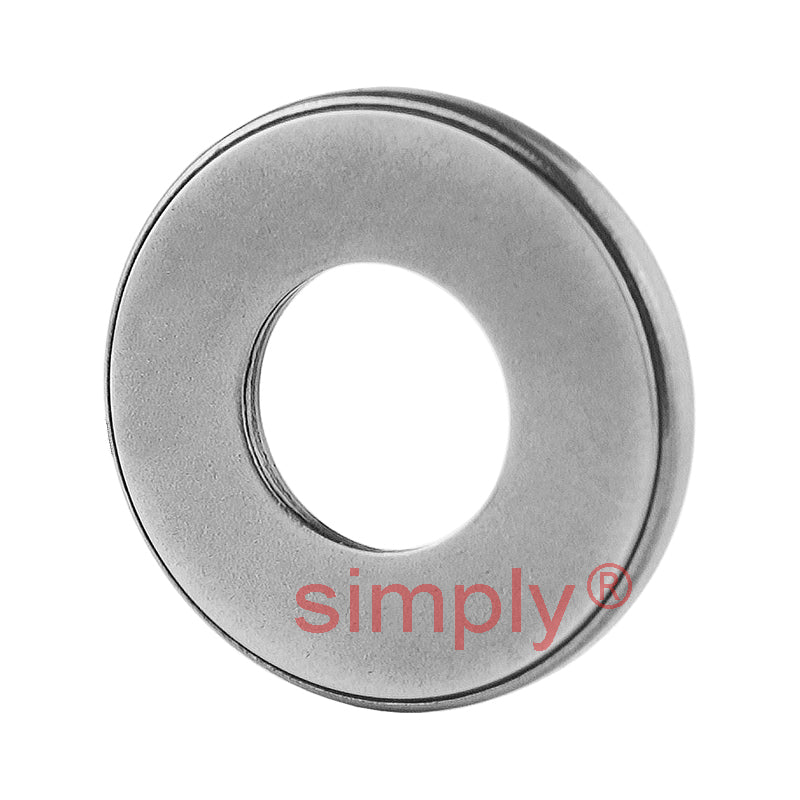

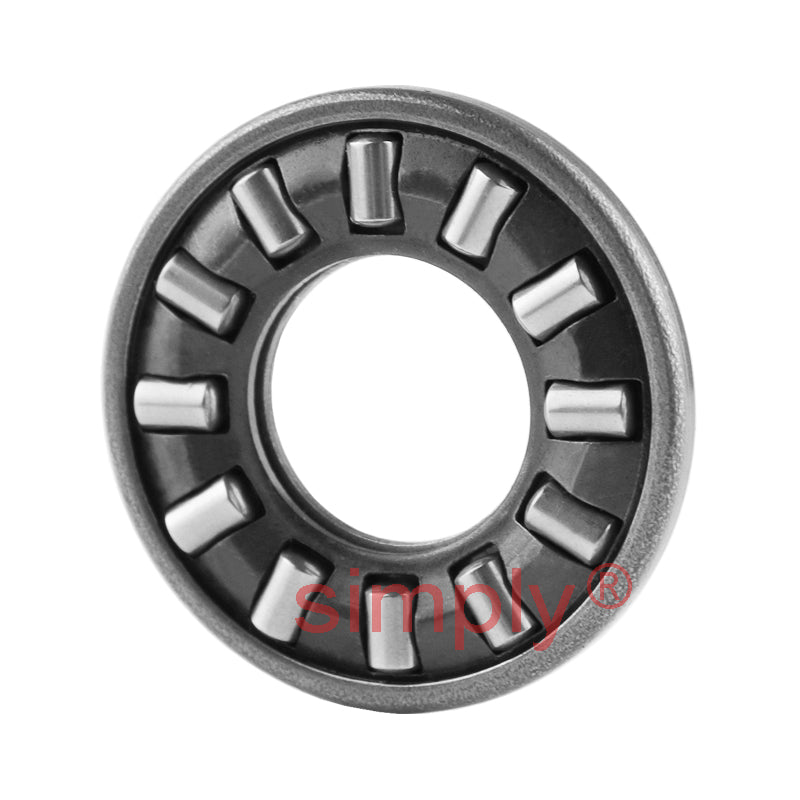

Major Brand AX5070 Thin Needle Roller Thrust Bearing 50x70x2.8mm
Major Brand AX5070 Thin Needle Roller Thrust Bearing 50x70x2.8mm
Regular price
£30.95
ex VAT£37.14inc. VAT
Regular price
Sale price
£30.95
ex VAT£37.14
inc. VAT
In stock
Price Break
10+
£27.55
19+
£26.00
29+
£25.69
39+
£25.38
49+
£25.07
74+
£24.76
99+
£23.21
199+
£22.90
249+
£22.59
499+
£22.28
999+
£21.67
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 70mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 50mm |
|---|---|
| D | 70mm |
| B1 | 2.8mm |
| Eb | 53.3mm |
| Ea | 65.7mm |
| Dynamic load | 22.5 kN |
| Static load | 118 kN |
| Speed rating in oil | 4000 rpm |
| Mass | 0.026 kg |
