SKU: AX3552-MB

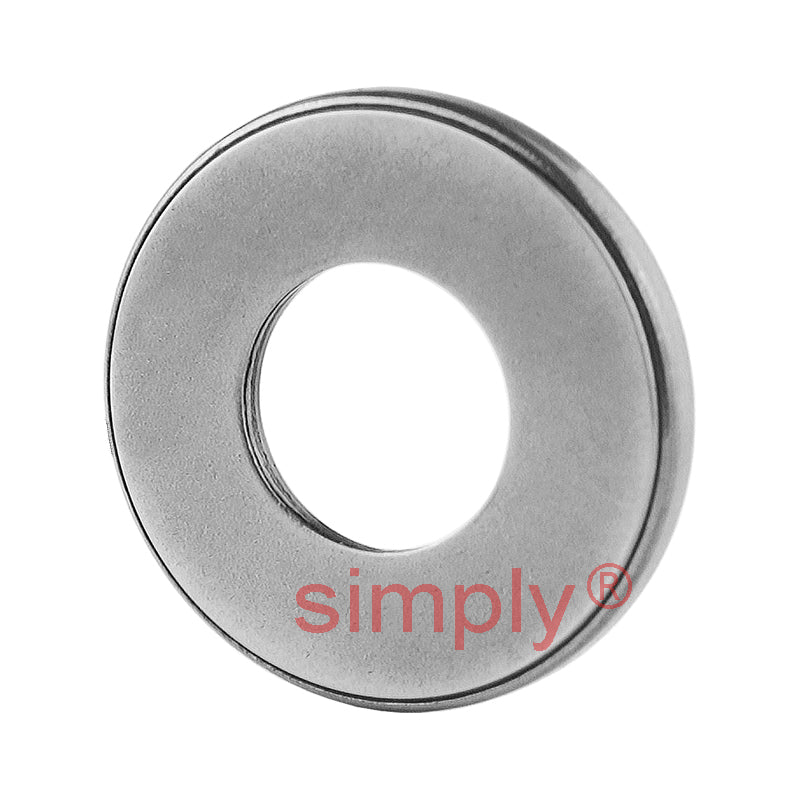

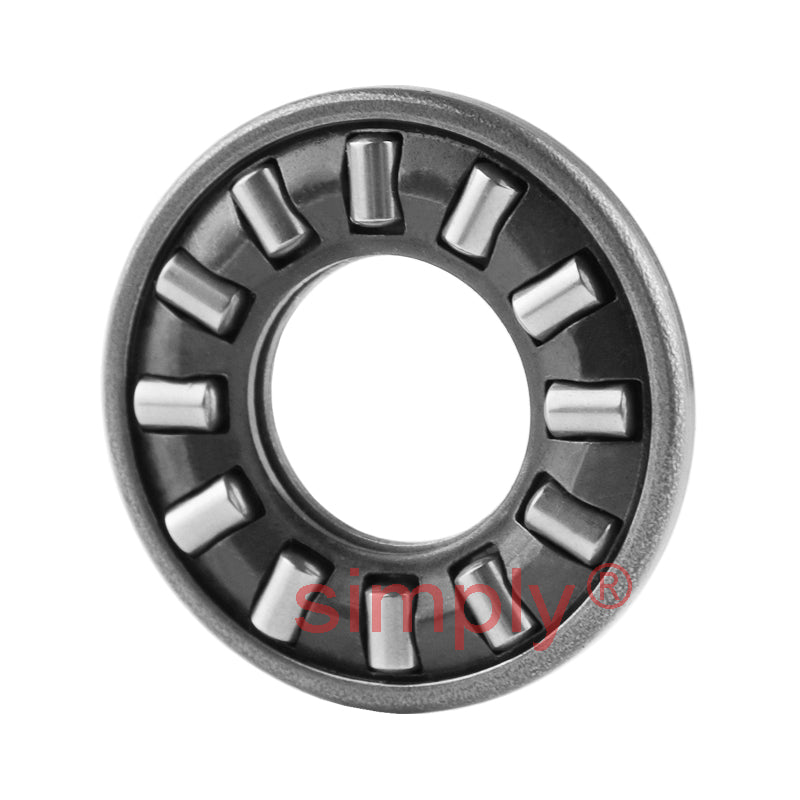

Major Brand AX3552 Thin Needle Roller Thrust Bearing 35x52x2.8mm
Major Brand AX3552 Thin Needle Roller Thrust Bearing 35x52x2.8mm
Regular price
£19.51
ex VAT£23.41inc. VAT
Regular price
Sale price
£19.51
ex VAT£23.41
inc. VAT
In stock
Price Break
10+
£17.36
19+
£16.39
29+
£16.19
39+
£16.00
49+
£15.80
74+
£15.61
99+
£14.63
199+
£14.44
249+
£14.24
499+
£14.05
999+
£13.66
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 52mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 35mm |
|---|---|
| D | 52mm |
| B1 | 2.8mm |
| Eb | 37.2mm |
| Ea | 49mm |
| Dynamic load | 18.9 kN |
| Static load | 84 kN |
| Speed rating in oil | 5500 rpm |
| Mass | 0.019 kg |
