SKU: AX3.56590-MB

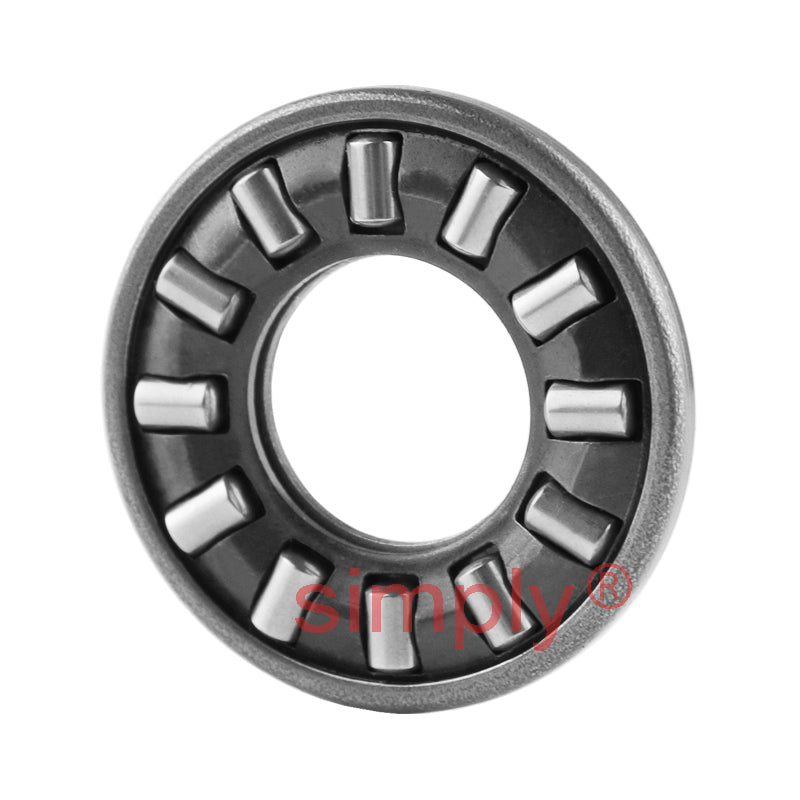

Major Brand AX3.56590 Thin Needle Roller Thrust Bearing 65x90x3.5mm - Allow 2-3 Days
Major Brand AX3.56590 Thin Needle Roller Thrust Bearing 65x90x3.5mm - Allow 2-3 Days
Regular price
£66.47
ex VAT£79.76inc. VAT
Regular price
Sale price
£66.47
ex VAT£79.76
inc. VAT
In stock
Price Break
10+
£65.81
19+
£63.15
29+
£61.82
39+
£59.82
49+
£58.49
74+
£55.17
99+
£46.53
199+
£0.00
249+
£0.00
499+
£0.00
999+
£0.00
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 3.5mm
Technical
Technical
| Dc1 | 65mm |
|---|---|
| D | 90mm |
| B1 | 3.5mm |
| Eb | 68.5mm |
| Ea | 84.2mm |
| Dynamic load | 33.5 kN |
| Static load | 210 kN |
| Speed rating in oil | 3200 rpm |
| Mass | 0.059 kg |
