SKU: AX1932-MB

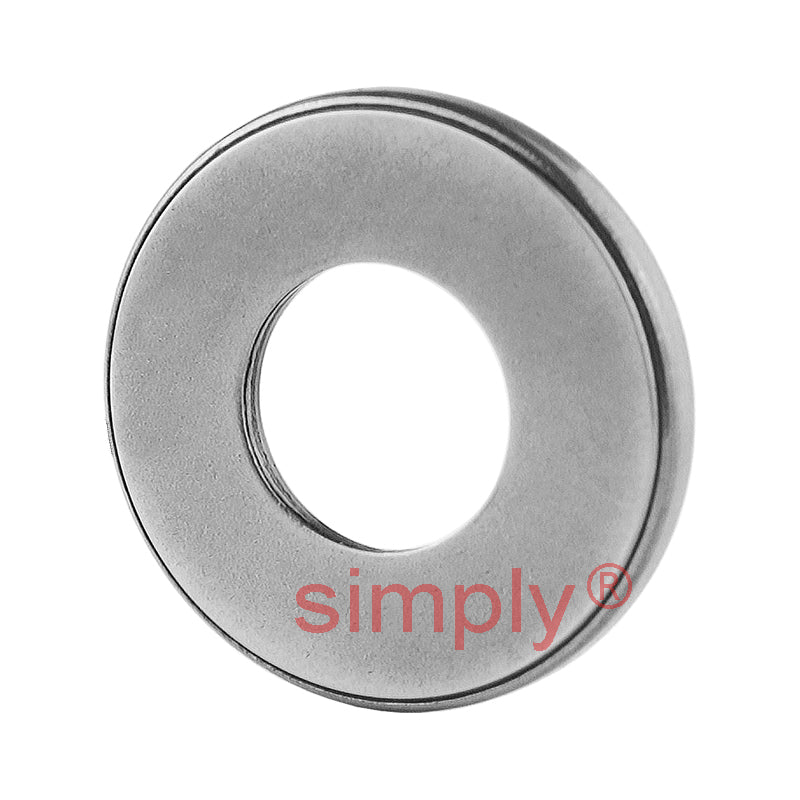

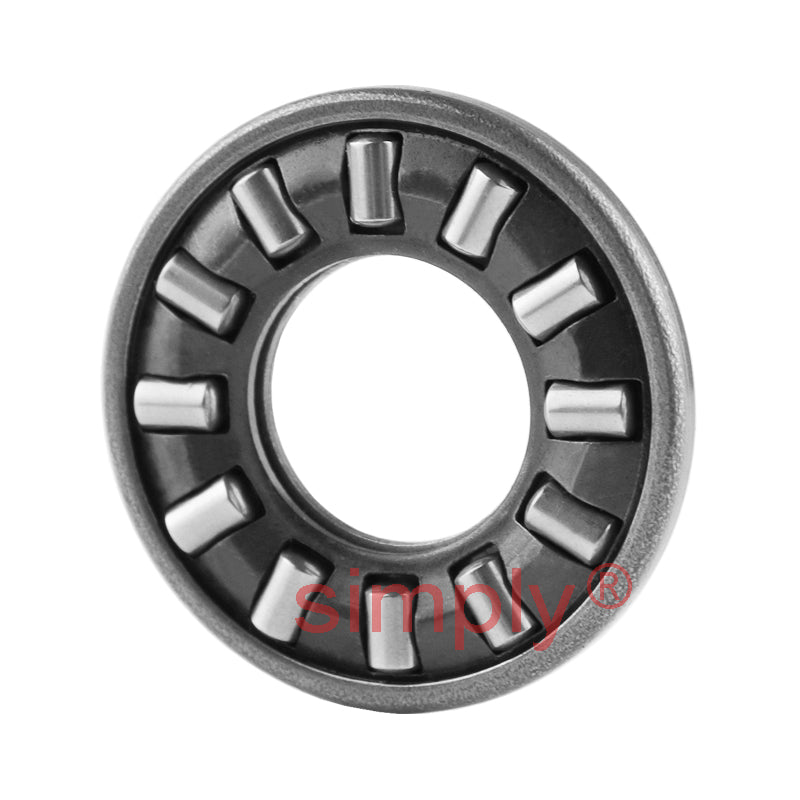

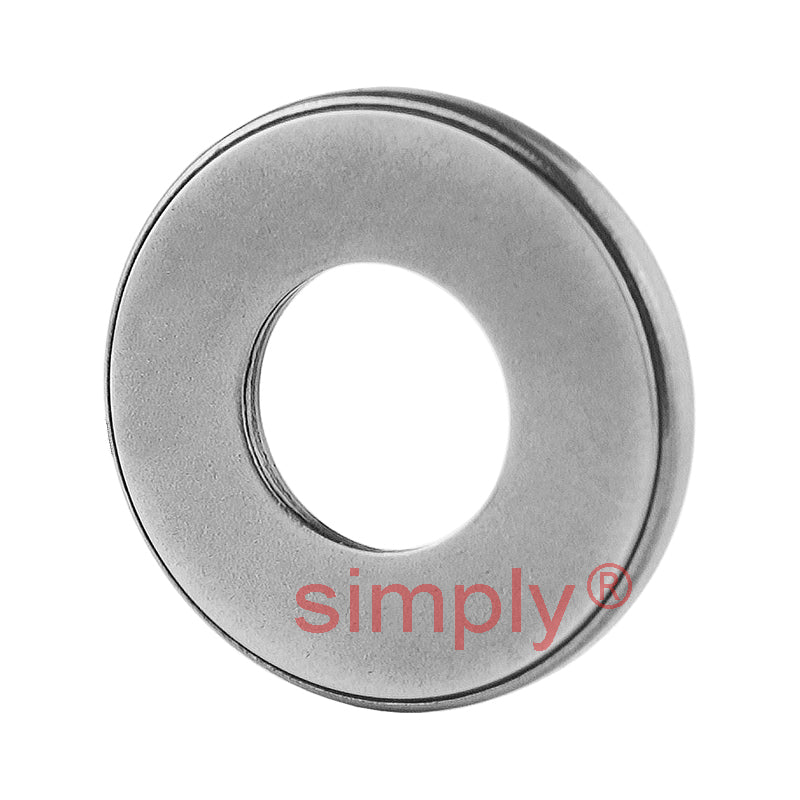

Major Brand AX1932 Thin Needle Roller Thrust Bearing 19x32x2.8mm
Major Brand AX1932 Thin Needle Roller Thrust Bearing 19x32x2.8mm
Regular price
£8.16
ex VAT£9.79inc. VAT
Regular price
Sale price
£8.16
ex VAT£9.79
inc. VAT
In stock
Price Break
10+
£7.26
19+
£6.85
29+
£6.77
39+
£6.69
49+
£6.61
74+
£6.53
99+
£6.12
199+
£6.04
249+
£5.96
499+
£5.88
999+
£5.71
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 19mm
- Outside Diameter:
- 32mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 19mm |
|---|---|
| D | 32mm |
| B1 | 2.8mm |
| Eb | 21mm |
| Ea | 28.6mm |
| Dynamic load | 8 kN |
| Static load | 23.3 kN |
| Speed rating in oil | 10000 rpm |
| Mass | 0.009 kg |
