SKU: AX1326-MB

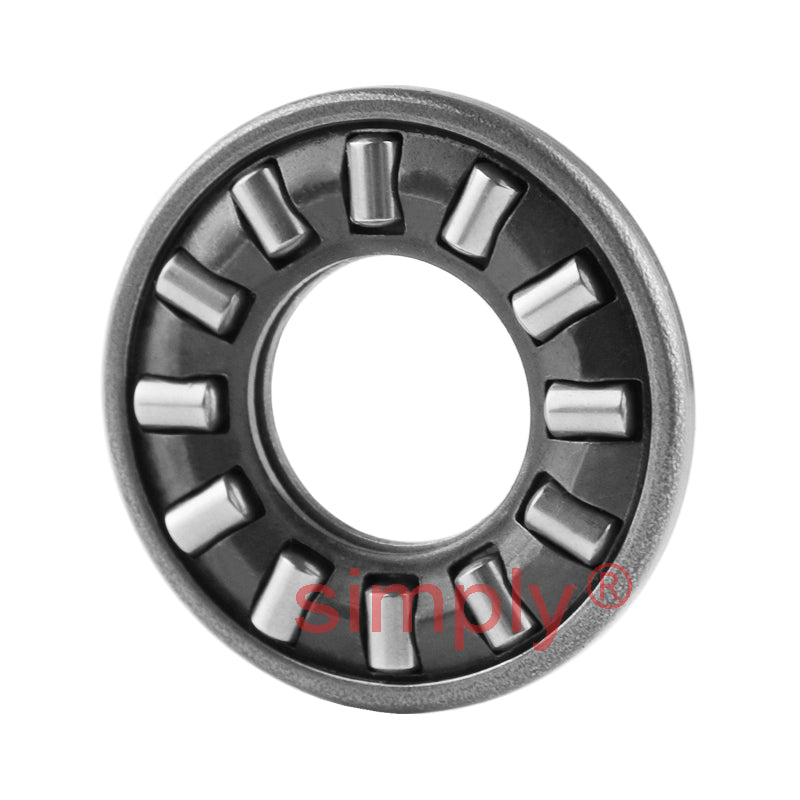

Major Brand AX1326 Thin Needle Roller Thrust Bearing 13x26x2.8mm
Major Brand AX1326 Thin Needle Roller Thrust Bearing 13x26x2.8mm
Regular price
£8.68
ex VAT£10.42inc. VAT
Regular price
Sale price
£8.68
ex VAT£10.42
inc. VAT
In stock
Price Break
10+
£7.73
19+
£7.29
29+
£7.20
39+
£7.12
49+
£7.03
74+
£6.94
99+
£6.51
199+
£6.42
249+
£6.34
499+
£6.25
999+
£6.08
Couldn't load pickup availability
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 13mm
- Outside Diameter:
- 26mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 13mm |
|---|---|
| D | 26mm |
| B1 | 2.8mm |
| Eb | 15mm |
| Ea | 22.6mm |
| Dynamic load | 6.9 kN |
| Static load | 17.7 kN |
| Speed rating in oil | 13000 rpm |
| Mass | 0.006 kg |
