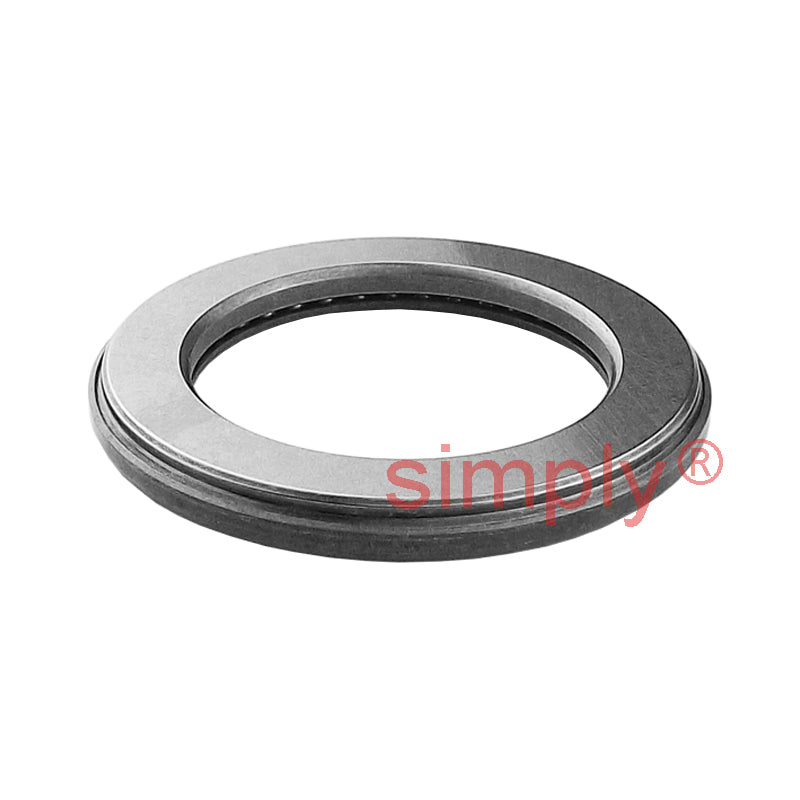

Nadella AX11130170 Thick Needle Roller Thrust Bearing 130x170x11mm - Allow 2-3 Days
Nadella AX11130170 Thick Needle Roller Thrust Bearing 130x170x11mm - Allow 2-3 Days
Regular price
£554.21
ex VAT£665.05inc. VAT
Regular price
Sale price
£554.21
ex VAT£665.05
inc. VAT
In stock
Price Break
5+
£548.67
10+
£526.50
20+
£515.42
50+
£498.79
100+
£487.70
500+
£459.99
1000+
£387.95
Couldn't load pickup availability
Description
Description

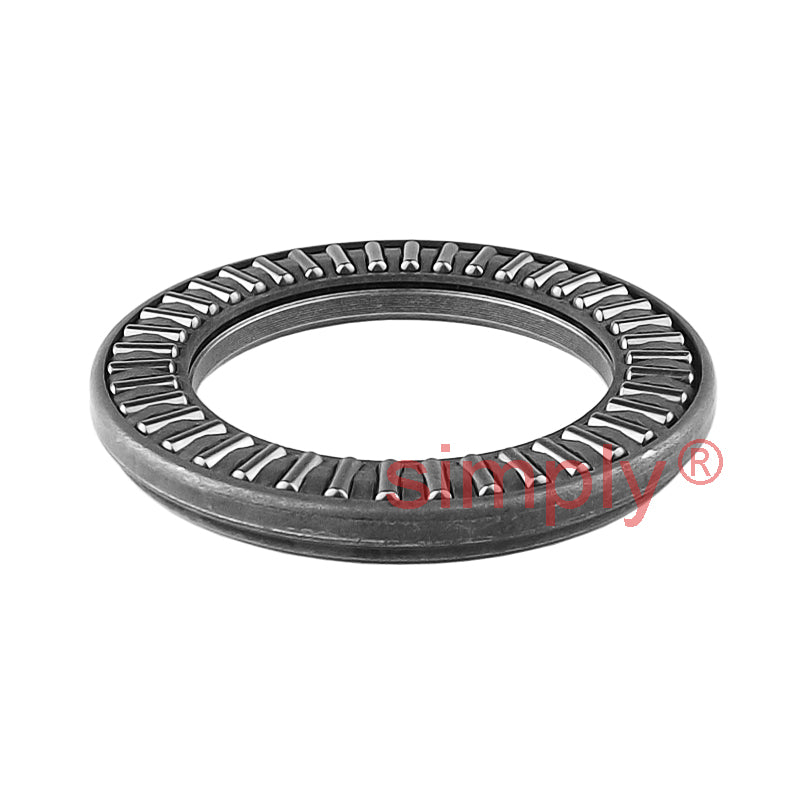

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 170mm
- Width:
- 11mm
Technical
Technical
| Dc1 | 130mm |
|---|---|
| D | 170mm |
| B1 | 11mm |
| Eb | 135mm |
| Ea | 161mm |
| Dynamic load | 106 kN |
| Static load | 710 kN |
| Speed rating in oil | 1700 rpm |
| Mass | 0.66 kg |
