SKU: AS5070-EU

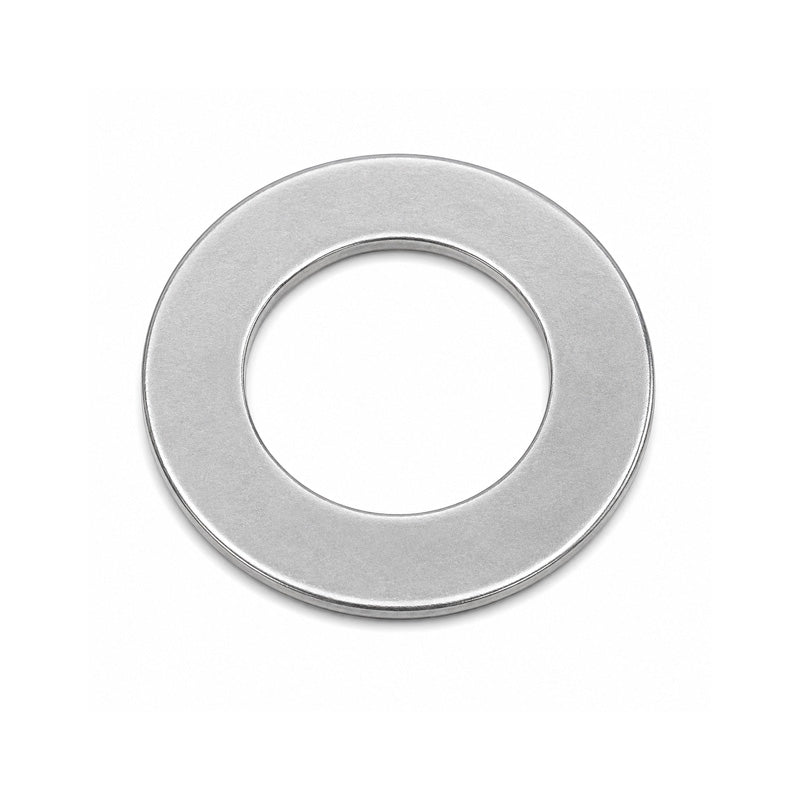

AS5070 Budget Thrust Washer Series AS 50x70x1mm
AS5070 Budget Thrust Washer Series AS 50x70x1mm
Regular price
£1.19
ex VAT£1.43inc. VAT
Regular price
Sale price
£1.19
ex VAT£1.43
inc. VAT
In stock
Price Break
5+
£0.83
10+
£0.71
20+
£0.65
50+
£0.60
100+
£0.48
500+
£0.42
1000+
£0.36
Description
Description
|
Budget AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 70mm
- Width:
- 1mm
Technical
Technical
| d | 50mm |
|---|---|
| d1 | 70mm |
| D | 70mm |
| D1 | 52mm |
| B | 1mm |
| r1r2 | 0.6mm |
| Material | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | 55 g |
