SKU: AN34-EU

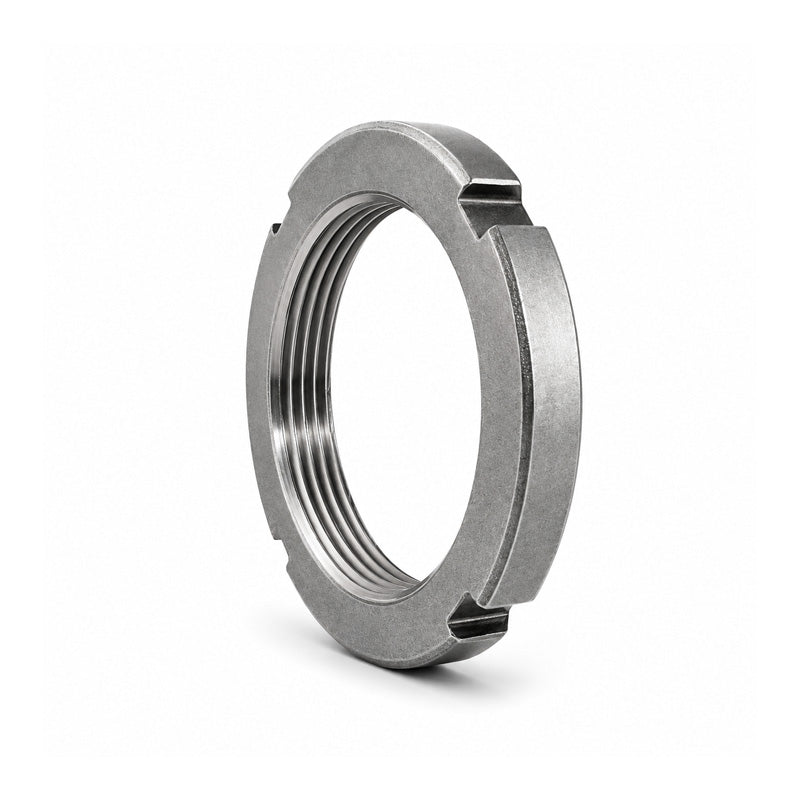

Premier Budget AN34 Imperial Lock Nut (Lock Washer Type) 6.659x8.661x1.073 inch
Premier Budget AN34 Imperial Lock Nut (Lock Washer Type) 6.659x8.661x1.073 inch
Regular price
£60.08
ex VAT£72.10inc. VAT
Regular price
Sale price
£60.08
ex VAT£72.10
inc. VAT
In stock
Price Break
3+
£53.47
5+
£50.47
9+
£49.87
19+
£49.27
49+
£48.67
74+
£48.07
99+
£45.06
199+
£44.46
249+
£43.86
499+
£43.26
999+
£42.06
Description
Description
Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft or sleeve nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- Premier Budget - Good Quality
- Inside Diameter:
- 169.14mm = 6.659 inch
- Outside Diameter:
- 219.99mm = 8.661 inch
- Width:
- 27.25mm = 1.073 inch
Technical
Technical
| G | 6.659 inch |
|---|---|
| Threads per inch | 8 |
| d<sub>1</sub> | 8.031 inch |
| d<sub>3</sub> max | 8.661 inch |
| B | 1.073 inch |
| b | 0.61 inch |
| h | 0.291 inch |
| Static axial load carrying capacity | 143878 lbf |
| Mass | 3.2069 kg |
| Associated spanner | <a href="advanced_search_result.php?search_in_description=1&keywords=TMFN30-40+lock+spanner">TMFN30-40 [Click Here]</a> |
| Associated locking device | <a href="advanced_search_result.php?search_in_description=1&keywords=W34+lock+tab+washer">W34 [Click Here] |
