SKU: AN24-EU

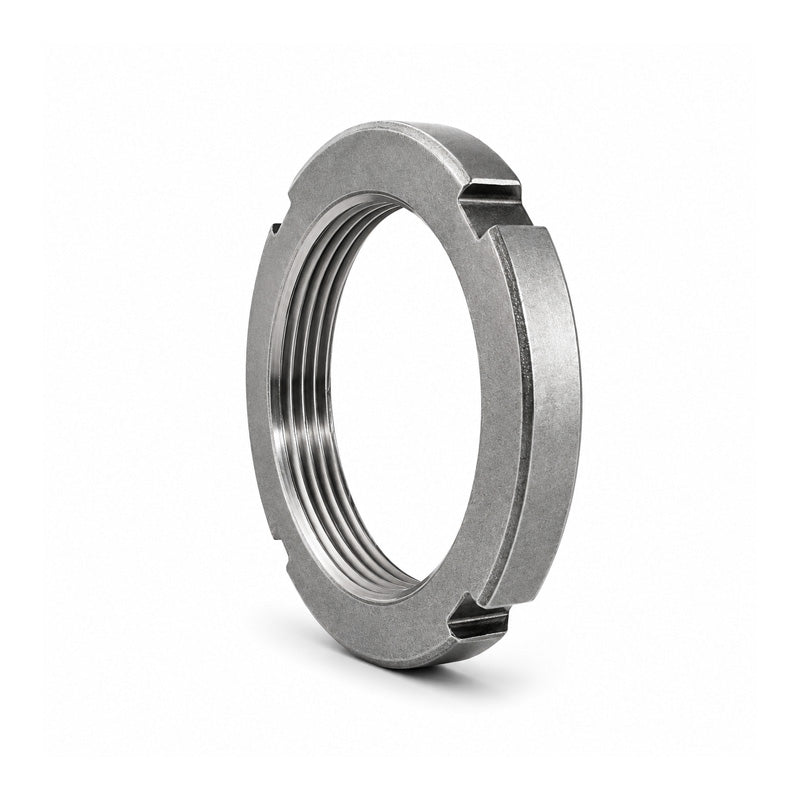

Premier Budget AN24 Imperial Lock Nut (Lock Washer Type) 4.716x6.13x0.823 inch
Premier Budget AN24 Imperial Lock Nut (Lock Washer Type) 4.716x6.13x0.823 inch
Regular price
£30.52
ex VAT£36.62inc. VAT
Regular price
Sale price
£30.52
ex VAT£36.62
inc. VAT
In stock
Price Break
3+
£27.17
5+
£25.64
9+
£25.33
19+
£25.03
49+
£24.72
74+
£24.42
99+
£22.89
199+
£22.59
249+
£22.28
499+
£21.98
999+
£21.37
Description
Description
Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft or sleeve nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- Premier Budget - Good Quality
- Inside Diameter:
- 119.79mm = 4.716 inch
- Outside Diameter:
- 155.7mm = 6.13 inch
- Width:
- 20.9mm = 0.823 inch
Technical
Technical
| G | 4.716 inch |
|---|---|
| Threads per inch | 12 |
| d<sub>1</sub> | 5.688 inch |
| d<sub>3</sub> max | 6.13 inch |
| B | 0.823 inch |
| b | 0.485 inch |
| h | 0.198 inch |
| Static axial load carrying capacity | 75311 lbf |
| Mass | 1.2338 kg |
| Associated spanner | <a href="advanced_search_result.php?search_in_description=1&keywords=TMFN23-30+lock+spanner">TMFN23-30 [Click Here]</a> |
| Associated locking device | <a href="advanced_search_result.php?search_in_description=1&keywords=W24+lock+tab+washer">W24 [Click Here] |
