SKU: AGR-24-38-FLEX

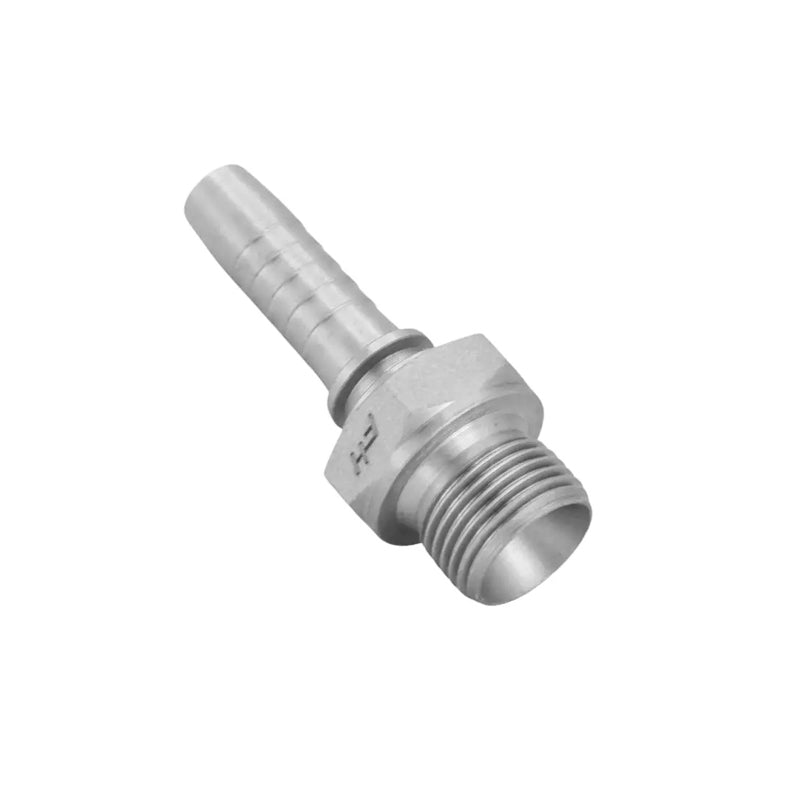

FLEXEQUIP/VOSS 1-1/2 inch BSP Male Two Piece Hose Fitting with 60 Degree Cone - Allow 2-3 Days
FLEXEQUIP/VOSS 1-1/2 inch BSP Male Two Piece Hose Fitting with 60 Degree Cone - Allow 2-3 Days
Regular price
£18.06
ex VAT£21.67inc. VAT
Regular price
Sale price
£18.06
ex VAT£21.67
inc. VAT
In stock
Price Break
3+
£16.08
5+
£15.17
9+
£14.99
19+
£14.81
49+
£14.63
74+
£14.45
99+
£13.55
199+
£13.37
249+
£13.19
499+
£13.01
999+
£12.64
Share this product
Description
Description
FLEXEQUIP/VOSS Male Two Piece Hose Fitting with 60 Degree Cone: These hose fittings are versatile and durable parallel male hose fitting, commonly used in the UK and Ireland for medium to high-pressure hydraulic applications. Available with either BSP or NPT thread, this fitting ensures a reliable, leak-free connection. BSP versions conform to ISO 12151-6 (ISO 8434-6) standards, while NPT fittings feature an NPTF tapered thread and meet SAE J 516 specifications. Designed for demanding environments, this fitting provides optimal performance and is ideal for a wide range of hydraulic systems.
Benefits: High compatibility, leek-free connections, durability under pressure
- Brand / Quality:
- FLEXEQUIP/VOSS - High Quality
- Thread Size:
- 1-1/2 inch BSP
- Length:
- 104mm
- Type:
- AGR
- Angle:
- * Straight
- Cone Angle:
- 60 degrees
Technical
Technical
| Hose Bore | 1-1/2 inch |
|---|---|
| Thread (d2) | 1-1/2 inch |
| DN Size | 38mm |
| Total Length (lg) | 104mm |
| Length (lh) | 24mm |
| Cut Off (lx) | 46mm |
| Bore Size (dx) | 32mm |
| Nut Size (SW) | 55mm |
| Angle | * Straight degrees |
| Cone Angle | 60 degrees |
| Weight | 0.519 kg |
