SKU: 8Q-K12X18X12-NTN

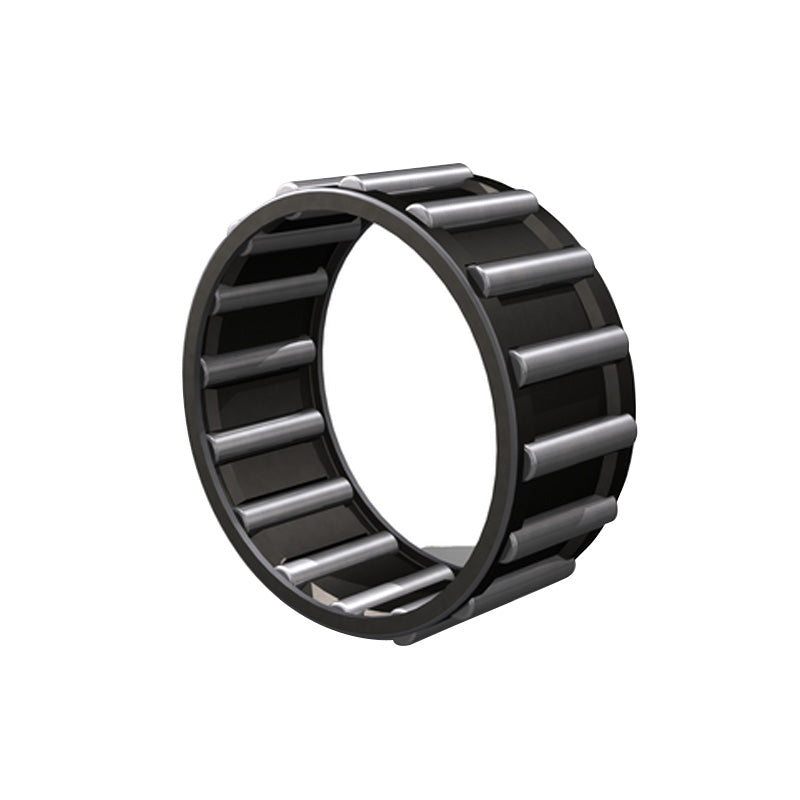

NTN 8Q-K12X18X12 Needle Roller and Nitrided Cage Assembly 12x18x12mm - Allow 2-3 Days
NTN 8Q-K12X18X12 Needle Roller and Nitrided Cage Assembly 12x18x12mm - Allow 2-3 Days
Regular price
£4.79
ex VAT£5.75inc. VAT
Regular price
Sale price
£4.79
ex VAT£5.75
inc. VAT
In stock
Price Break
3+
£4.74
4+
£4.55
9+
£4.45
19+
£4.31
49+
£4.22
99+
£3.98
499+
£3.35
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 18mm
- Width:
- 12mm
Technical
Technical
| Fw - Inside diameter | 12mm |
|---|---|
| Ew - Outside diameter | 18mm |
| Bc - Cage width | 12mm |
| Cr - Dynamic load rating | 8.65 kN |
| C0r - Static load rating | 8 kN |
| N - Grease lubrication limit speed | 17000 tr/min |
| N - Oil lubrication limit speed | 26000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
