SKU: 87503-KSM

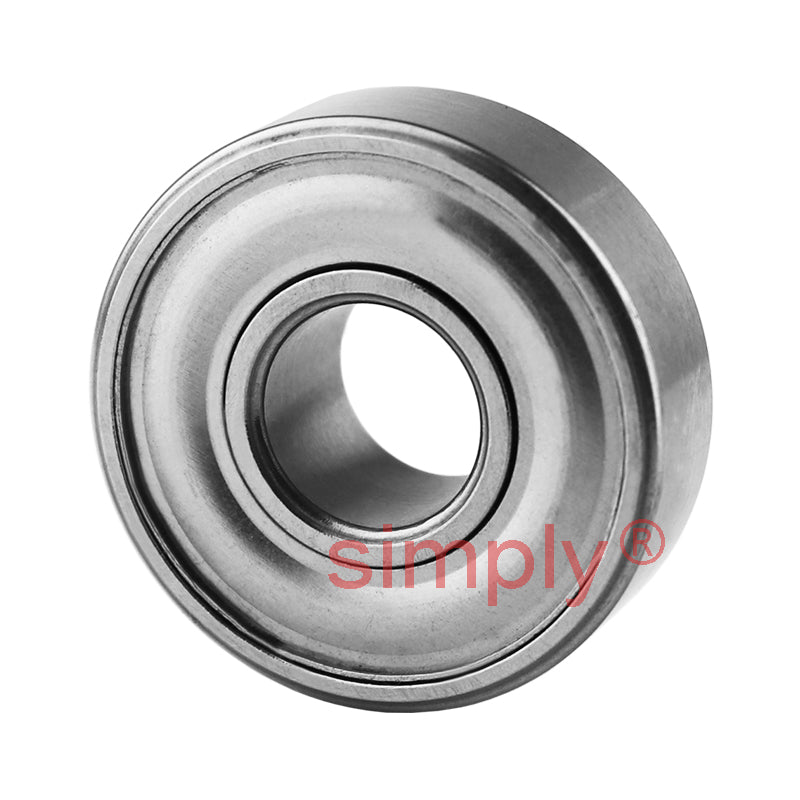

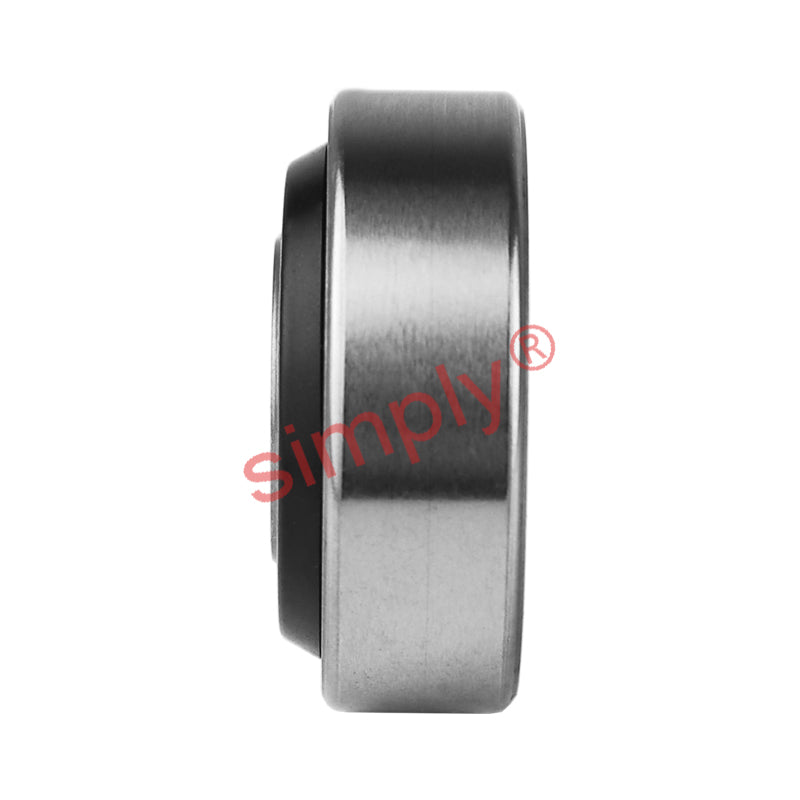

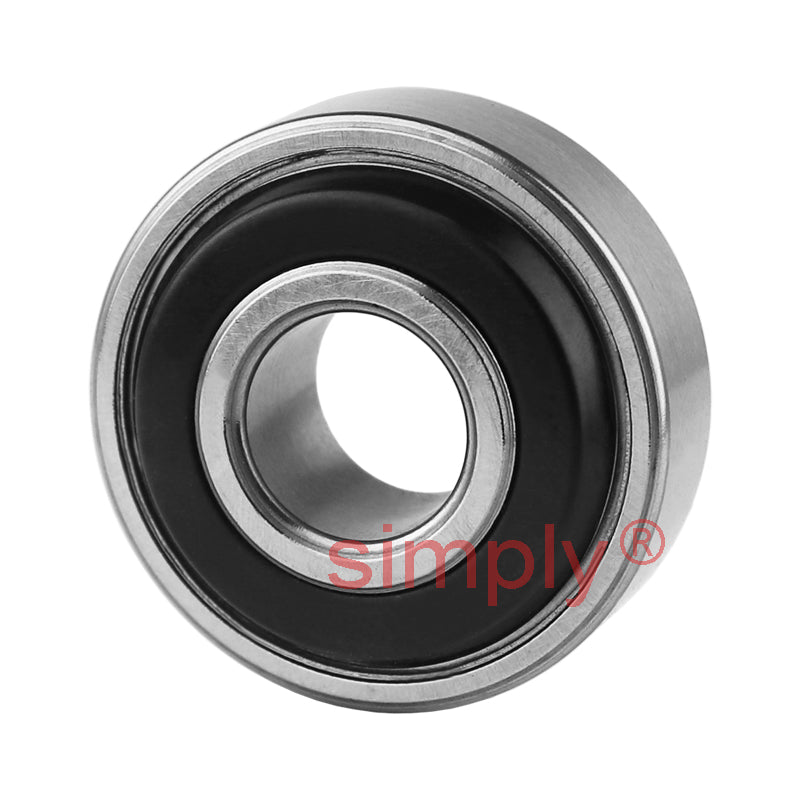

KSM 87503 Special Shielded Metric Ball Bearing with Extended Inner 17x40x14.3x12mm
KSM 87503 Special Shielded Metric Ball Bearing with Extended Inner 17x40x14.3x12mm
Regular price
£26.04
ex VAT£31.25inc. VAT
Regular price
Sale price
£26.04
ex VAT£31.25
inc. VAT
Equivalent to: 202FSF
In stock
Price Break
4+
£23.17
9+
£21.87
19+
£21.61
29+
£21.35
49+
£21.09
99+
£20.83
179+
£19.53
249+
£19.27
499+
£19.01
699+
£18.75
999+
£18.23
Description
Description
|
Specialist Shielded Ball Bearing: This bearing consist of chrome steel ball bearings and raceways with an extended inner raceway, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race, metal shielded on the back. |
Equivalent: 202FSF
- Brand / Quality:
- KSM - Good Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 14.3mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| --- | Technical Data |
|---|---|
| d | 17mm |
| D | 40mm |
| B | 14.3mm |
| B1 | 12mm |
| --- | Speeds, Weights and Loads |
| Dynamic Load Rating Cr | 9.56 kN |
| Static Load Rating C0r | 4.8 kN |
| Limiting Speed in Grease | 12000 r/min |
| Weight | 0.075 kg |
