SKU: 80-3-SYN-NO26-RENOLD
Renold Synergy 80-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Renold Synergy 80-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
£91.96
ex VAT£110.35inc. VAT
Regular price
Sale price
£91.96
ex VAT£110.35
inc. VAT
In stock
Price Break
10+
£81.84
19+
£77.25
29+
£76.33
39+
£75.41
49+
£74.49
74+
£73.57
99+
£68.97
199+
£68.05
249+
£67.13
499+
£66.21
999+
£64.37
Couldn't load pickup availability
Description
Description

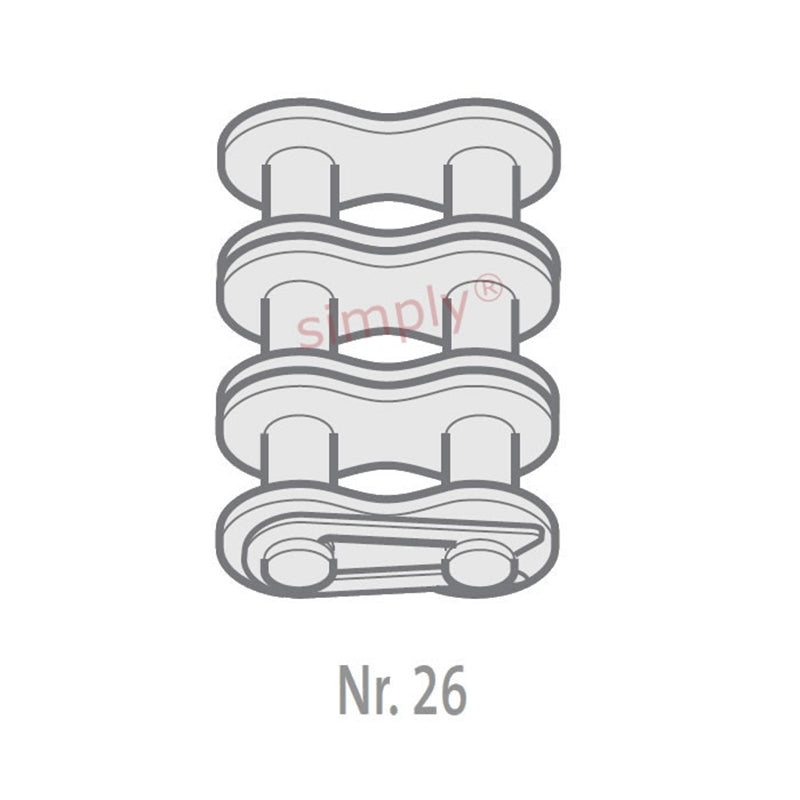

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.13mm |
| Plate Width Inner max (E) | 3.25mm |
| Plate Width Outer max (F) | 3.25mm |
| Pin Diameter max (G) | 7.94mm |
| Pin Length max (H2) | 91.2mm |
| Connecting Link Extension max (J) | 3mm |
| Transverse Pitch nom (K) | 29.29mm |
| ISO606 Tensile Strength min | 166800 N |
| Weight | 0.01kg/m |
