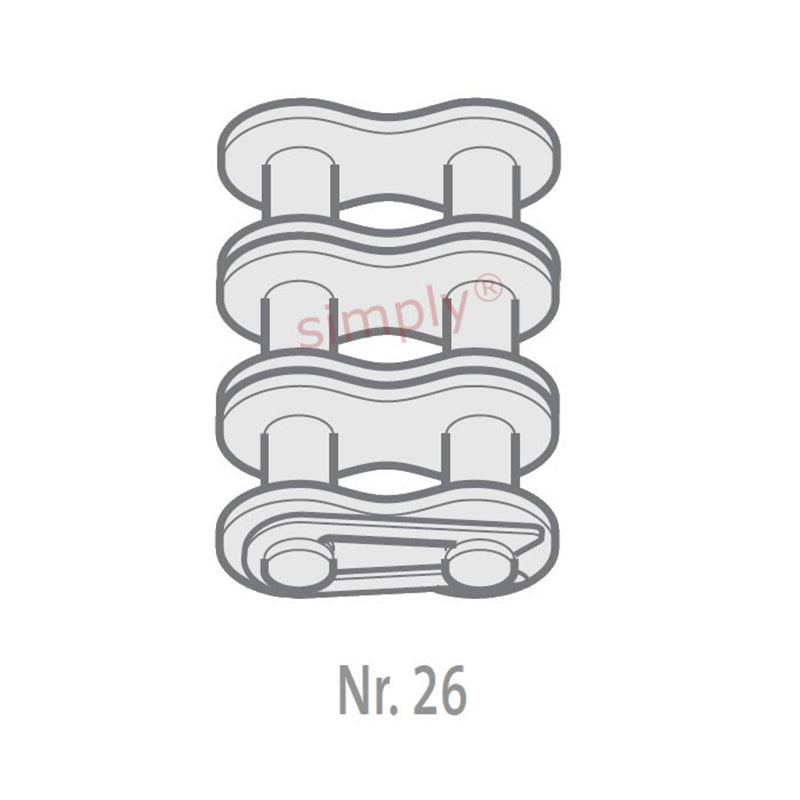

Branded 80-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Branded 80-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
£9.44
ex VAT£11.33inc. VAT
Regular price
Sale price
£9.44
ex VAT£11.33
inc. VAT
Equivalent to: 80-3-CL
In stock
Price Break
10+
£8.40
19+
£7.93
29+
£7.84
39+
£7.74
49+
£7.65
74+
£7.55
99+
£7.08
199+
£6.99
249+
£6.89
499+
£6.80
999+
£6.61
Couldn't load pickup availability
Description
Description
Branded CL / No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 80-3-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H1) | 90mm |
| Connecting Link Extension max (J) | 6.3mm |
| ISO606 Tensile Strength min | 166800 N |
| Weight | 29.29kg/m |
