SKU: 80-2-SD-NO26-RENOLD
Renold SD 80-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Renold SD 80-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
£15.45
ex VAT£18.54inc. VAT
Regular price
Sale price
£15.45
ex VAT£18.54
inc. VAT
In stock
Price Break
10+
£13.75
19+
£12.98
29+
£12.82
39+
£12.67
49+
£12.51
74+
£12.36
99+
£11.59
199+
£11.43
249+
£11.28
499+
£11.12
999+
£10.82
Couldn't load pickup availability
Description
Description

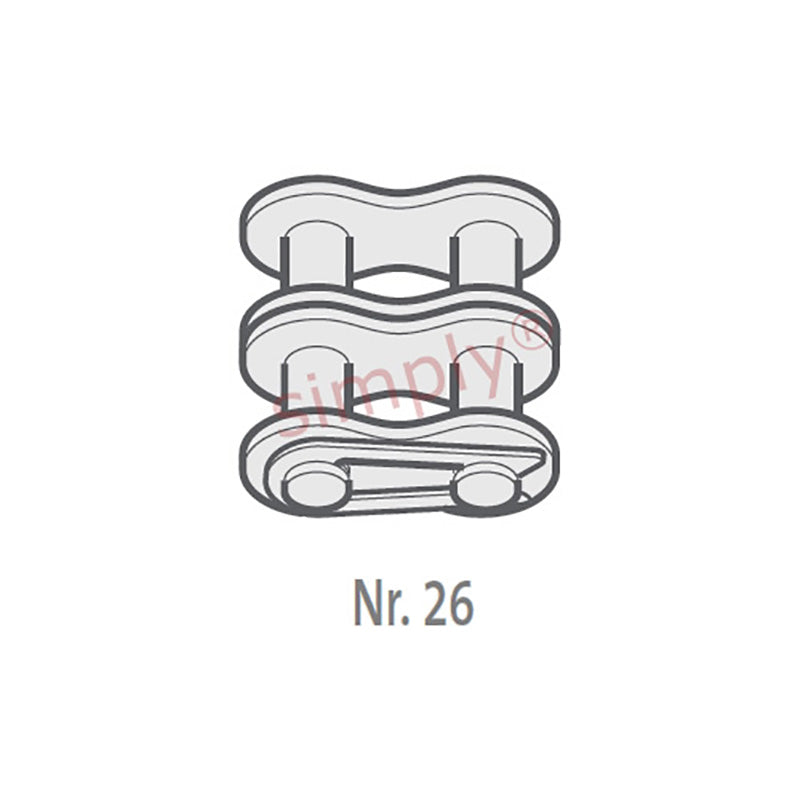

| Renold No. 26 ANSI Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H2) | 61.9mm |
| Connecting Link Extension max (J) | 2.3mm |
| Transverse Pitch nom (K) | 29.29mm |
| ISO606 Tensile Strength min | 111200 N |
| Weight | 0.04kg/m |
