SKU: 80-2-BB-NO12-RENOLD
Renold Blue Box 80-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1 inch Pitch
Renold Blue Box 80-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1 inch Pitch
Regular price
£59.26
ex VAT£71.11inc. VAT
Regular price
Sale price
£59.26
ex VAT£71.11
inc. VAT
In stock
Price Break
10+
£52.74
19+
£49.78
29+
£49.19
39+
£48.59
49+
£48.00
74+
£47.41
99+
£44.45
199+
£43.85
249+
£43.26
499+
£42.67
999+
£41.48
Couldn't load pickup availability
Description
Description

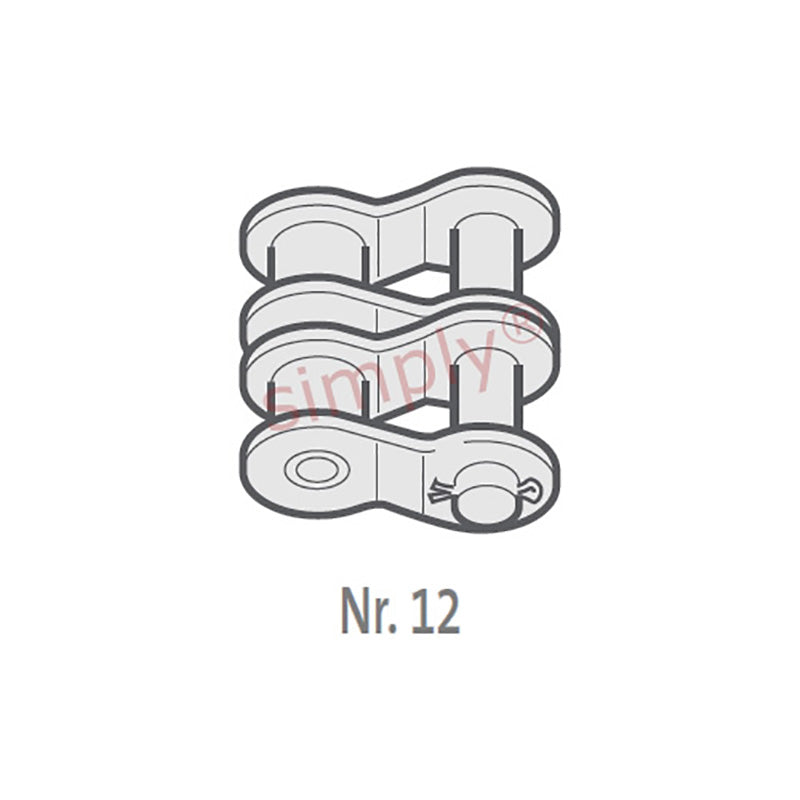

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.13mm |
| Plate Width Inner max (E) | 3.25mm |
| Plate Width Outer max (F) | 3.25mm |
| Pin Diameter max (G) | 7.94mm |
| Pin Length max (H2) | 61.9mm |
| Connecting Link Extension max (J) | 3mm |
| Transverse Pitch nom (K) | 29.29mm |
| ISO606 Tensile Strength min | 111200 N |
| Weight | 0.04kg/m |
