SKU: 80-1-NO30-MB
Branded 80-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1 inch Pitch
Branded 80-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1 inch Pitch
Regular price
£9.28
ex VAT£11.14inc. VAT
Regular price
Sale price
£9.28
ex VAT£11.14
inc. VAT
Equivalent to: 80-1-DOL
In stock
Price Break
10+
£8.26
19+
£7.80
29+
£7.70
39+
£7.61
49+
£7.52
74+
£7.42
99+
£6.96
199+
£6.87
249+
£6.77
499+
£6.68
999+
£6.50
Couldn't load pickup availability
Description
Description

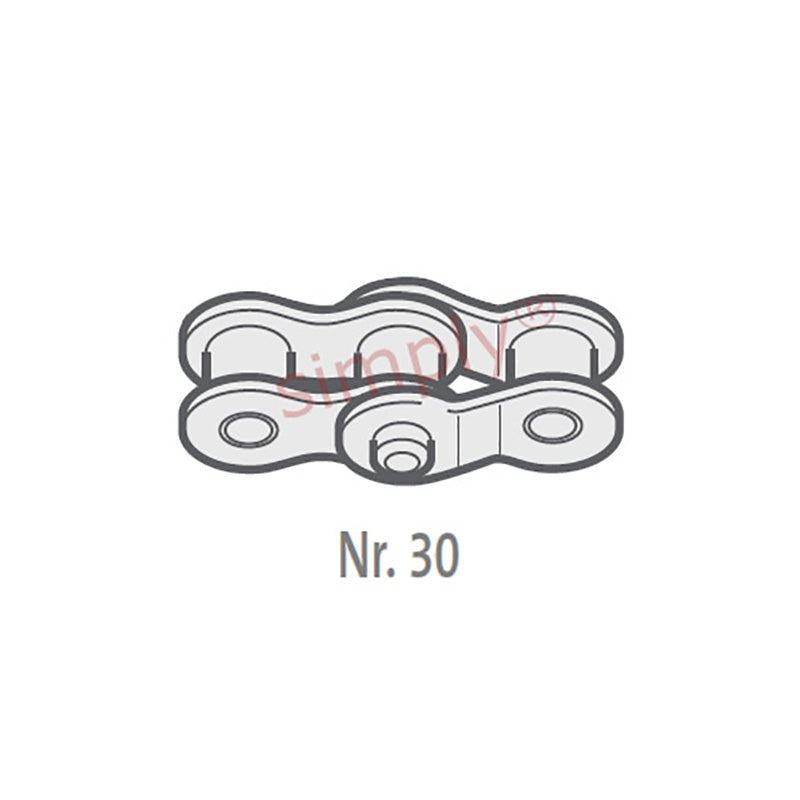

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 80-1-DOL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H1) | 32.8mm |
| Connecting Link Extension max (J) | 2.1mm |
| ISO606 Tensile Strength min | 55600 N |
| Weight | 0.02kg/m |
