SKU: 80-1-BB-NO26-RENOLD
Renold Blue Box 80-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
Renold Blue Box 80-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
£10.88
ex VAT£13.06inc. VAT
Regular price
Sale price
£10.88
ex VAT£13.06
inc. VAT
In stock
Price Break
10+
£9.68
19+
£9.14
29+
£9.03
39+
£8.92
49+
£8.81
74+
£8.70
99+
£8.16
199+
£8.05
249+
£7.94
499+
£7.83
999+
£7.62
Couldn't load pickup availability
Description
Description

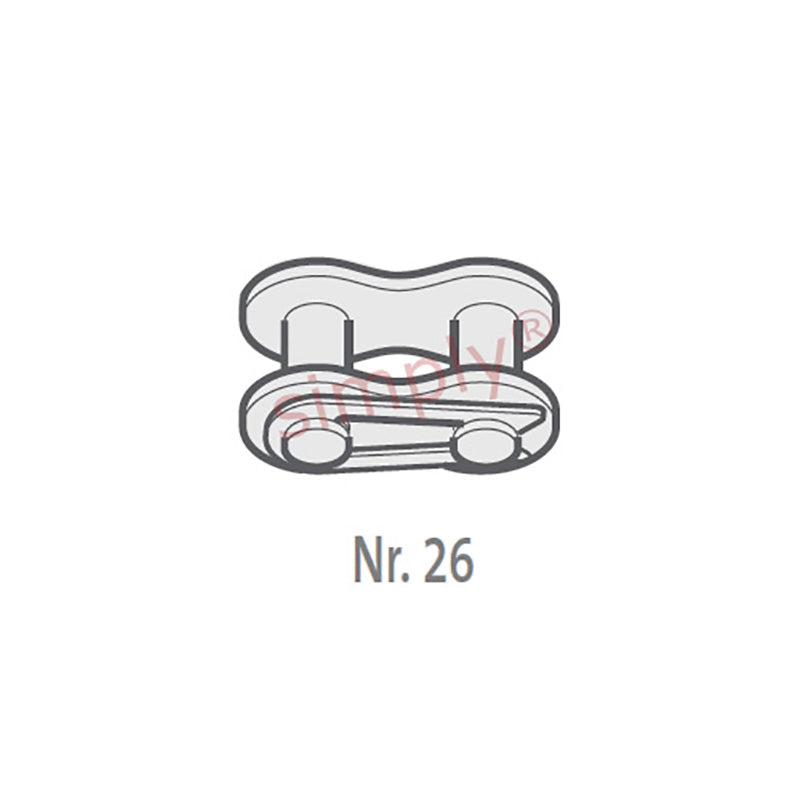

| Renold No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.13mm |
| Plate Width Inner max (E) | 3.25mm |
| Plate Width Outer max (F) | 3.25mm |
| Pin Diameter max (G) | 7.94mm |
| Pin Length max (H2) | 32.7mm |
| Connecting Link Extension max (J) | 3mm |
| ISO606 Tensile Strength min | 55600 N |
| Weight | 0.02kg/m |
