SKU: 7912A5TRDBBMP4-RHP

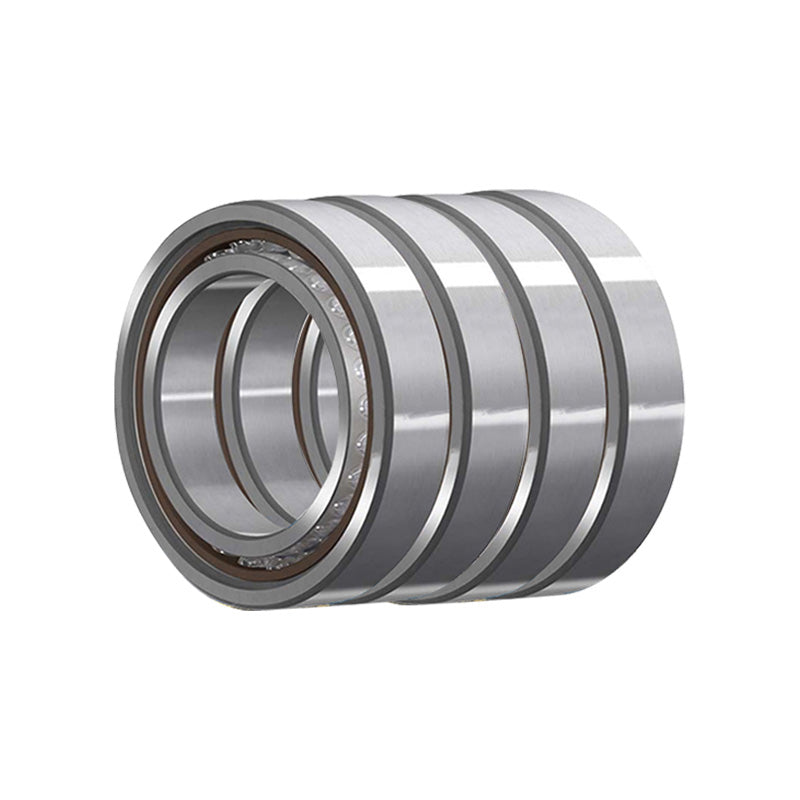

RHP 7912A5TRDBBMP4 Super Precision Angular Contact Spindle Bearing 60x85x13mm (Set of 4)

RHP 7912A5TRDBBMP4 Super Precision Angular Contact Spindle Bearing 60x85x13mm (Set of 4)
Regular price £841.16 ex VAT£1,009.39inc. VAT
Regular price Sale price £841.16 ex VAT£1,009.39 inc. VAT
Sale Sold out

In stock

Price Break
3+ £748.64
5+ £706.58
10+ £698.17
25+ £689.75
49+ £681.34
74+ £672.93
99+ £630.87
199+ £622.46
249+ £614.05
499+ £605.64
999+ £588.81
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 60mm
D 85mm
B 13mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 19.2Kn
C<sub>or</sub> 17.7kN
Axial load Kn 13 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 23.4mm
Max speed in grease 13800 rpm
Max speed in oil 20700 rpm
--- Fitting dimensions
d<sub>a min</sub> 66mm
D<sub>a max</sub> 79mm
D<sub>b max</sub> 80mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.792kg
