SKU: 7910CTRSULP3-NSK

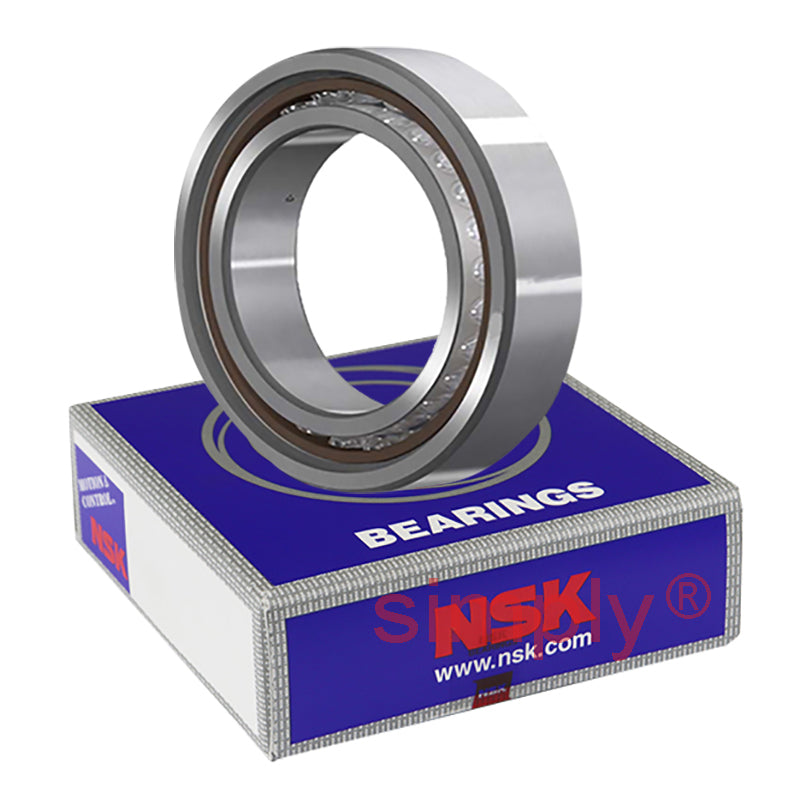

NSK 7910CTRSULP3 Super Precision Angular Contact Spindle Bearing 50x72x12mm

NSK 7910CTRSULP3 Super Precision Angular Contact Spindle Bearing 50x72x12mm
Regular price £155.30 ex VAT£186.36inc. VAT
Regular price Sale price £155.30 ex VAT£186.36 inc. VAT
Sale Sold out

In stock

Price Break
3+ £138.21
5+ £130.45
10+ £128.89
25+ £127.34
49+ £125.79
74+ £124.24
99+ £116.47
199+ £114.92
249+ £113.37
499+ £111.81
999+ £108.71
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 50mm
D 72mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 17.7Kn
C<sub>or</sub> 15kN
Axial load Kn 9.45 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16.2
Effective diameter 14.2mm
Max speed in grease 18900 rpm
Max speed in oil 28700 rpm
--- Fitting dimensions
d<sub>a min</sub> 55mm
D<sub>a max</sub> 67mm
D<sub>b max</sub> 69.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.13kg
