SKU: 7910A5TRDUMP4-NSK

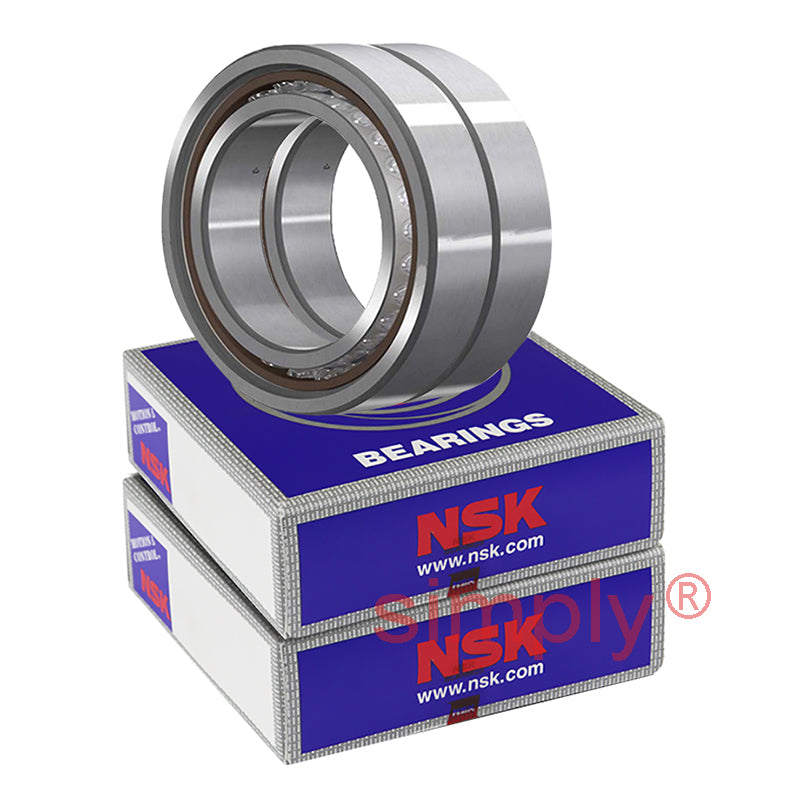

NSK 7910A5TRDUMP4 Super Precision Angular Contact Spindle Bearing 50x72x12mm (Set of 2)

NSK 7910A5TRDUMP4 Super Precision Angular Contact Spindle Bearing 50x72x12mm (Set of 2)
Regular price £310.38 ex VAT£372.46inc. VAT
Regular price Sale price £310.38 ex VAT£372.46 inc. VAT
Sale Sold out

In stock

Price Break
3+ £276.23
5+ £260.72
10+ £257.61
25+ £254.51
49+ £251.40
74+ £248.30
99+ £232.78
199+ £229.68
249+ £226.57
499+ £223.47
999+ £217.26
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 50mm
D 72mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 16.7Kn
C<sub>or</sub> 14.2kN
Axial load Kn 11 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 20.2mm
Max speed in grease 16400 rpm
Max speed in oil 24600 rpm
--- Fitting dimensions
d<sub>a min</sub> 55mm
D<sub>a max</sub> 67mm
D<sub>b max</sub> 69.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.264kg
