SKU: 7910A5TRDUDMP3-NSK

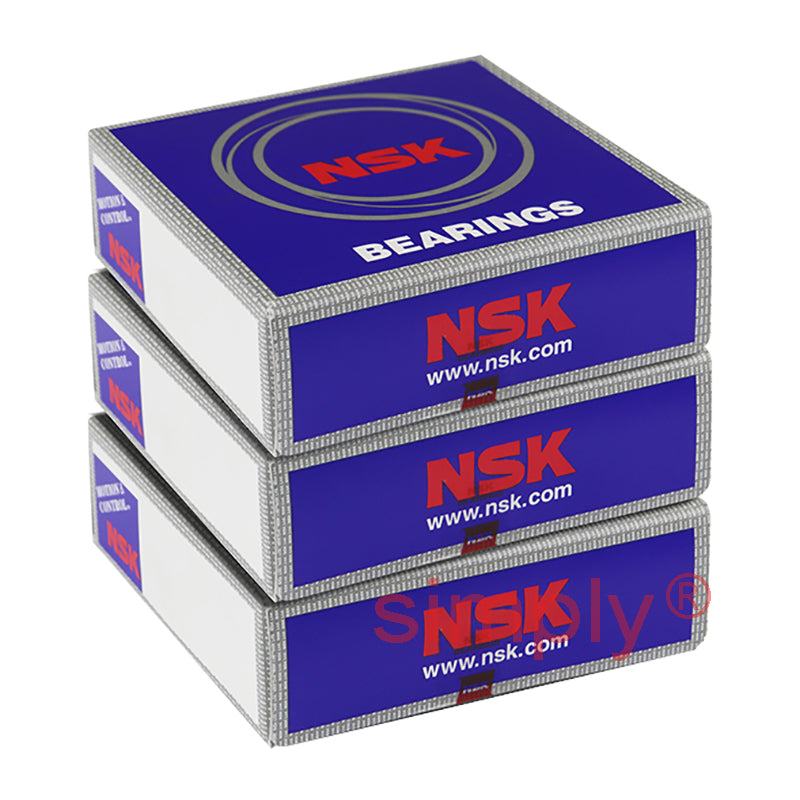

NSK 7910A5TRDUDMP3 Super Precision Angular Contact Spindle Bearing 50x72x12mm (Set of 3)

NSK 7910A5TRDUDMP3 Super Precision Angular Contact Spindle Bearing 50x72x12mm (Set of 3)
Regular price £466.31 ex VAT£559.57inc. VAT
Regular price Sale price £466.31 ex VAT£559.57 inc. VAT
Sale Sold out

In stock

Price Break
3+ £415.02
5+ £391.70
10+ £387.04
25+ £382.38
49+ £377.71
74+ £373.05
99+ £349.74
199+ £345.07
249+ £340.41
499+ £335.75
999+ £326.42
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 50mm
D 72mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 16.7Kn
C<sub>or</sub> 14.2kN
Axial load Kn 11 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 20.2mm
Max speed in grease 16400 rpm
Max speed in oil 24600 rpm
--- Fitting dimensions
d<sub>a min</sub> 55mm
D<sub>a max</sub> 67mm
D<sub>b max</sub> 69.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.396kg
