SKU: 7908CTRDUELP3-NSK

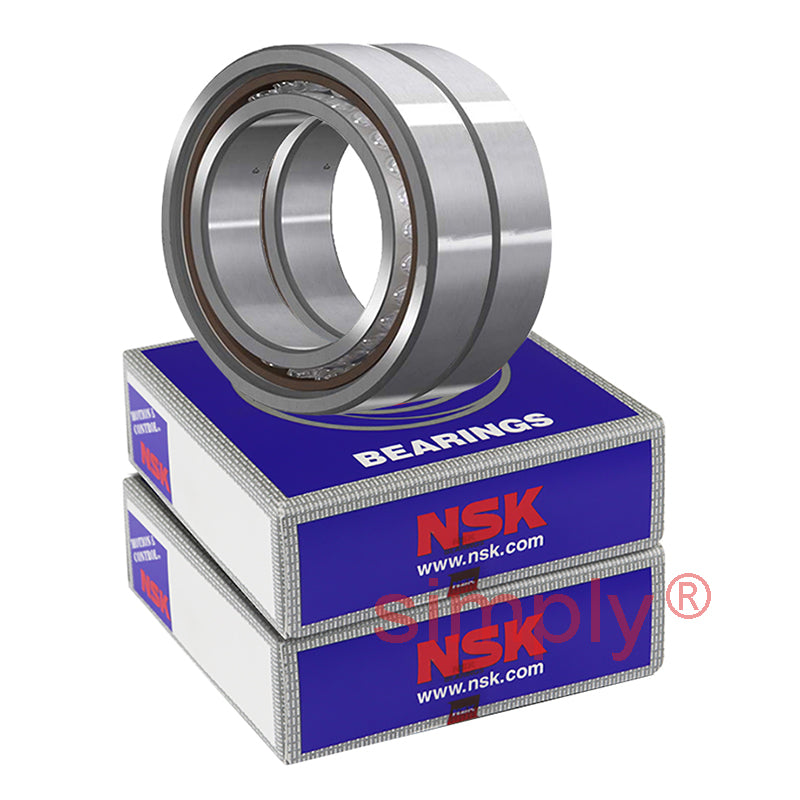

NSK 7908CTRDUELP3 Super Precision Angular Contact Spindle Bearing 40x62x12mm (Set of 2)

NSK 7908CTRDUELP3 Super Precision Angular Contact Spindle Bearing 40x62x12mm (Set of 2)
Regular price £295.06 ex VAT£354.07inc. VAT
Regular price Sale price £295.06 ex VAT£354.07 inc. VAT
Sale Sold out

In stock

Price Break
3+ £262.60
5+ £247.85
10+ £244.90
25+ £241.95
49+ £239.00
74+ £236.05
99+ £221.30
199+ £218.34
249+ £215.39
499+ £212.44
999+ £206.54
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 40mm
D 62mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 15.9Kn
C<sub>or</sub> 11.7kN
Axial load Kn 8.4 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 12.8mm
Max speed in grease 22600 rpm
Max speed in oil 34400 rpm
--- Fitting dimensions
d<sub>a min</sub> 45mm
D<sub>a max</sub> 57mm
D<sub>b max</sub> 59.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.218kg
