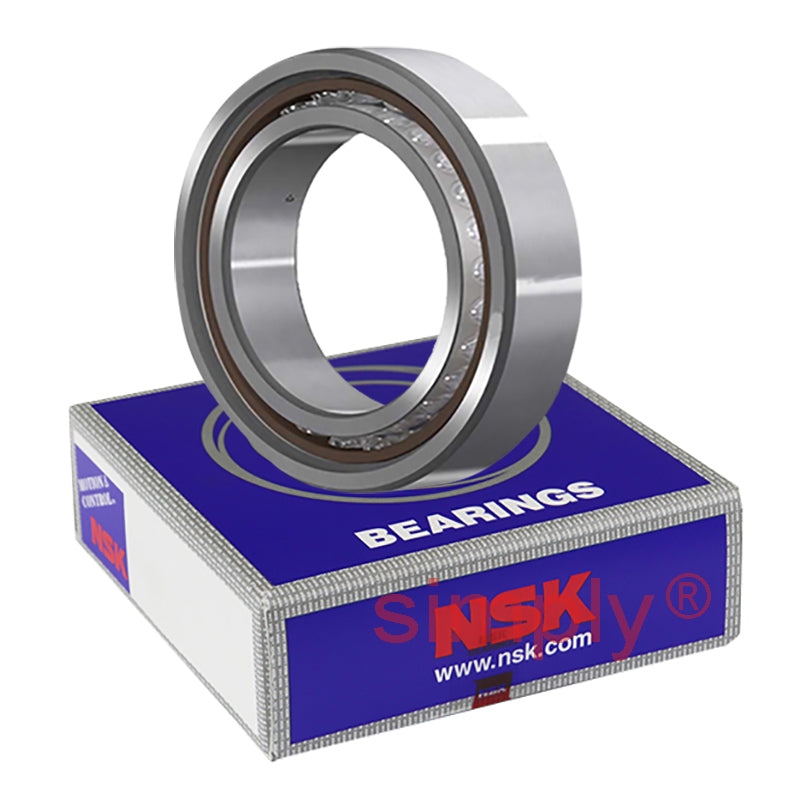

NSK 7907CTRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 35x55x10mm

NSK 7907CTRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 35x55x10mm
Regular price £158.40 ex VAT£190.08inc. VAT
Regular price Sale price £158.40 ex VAT£190.08 inc. VAT
Sale Sold out

In stock

Price Break
3+ £140.98
5+ £133.06
10+ £131.47
25+ £129.89
49+ £128.30
74+ £126.72
99+ £118.80
199+ £117.22
249+ £115.63
499+ £114.05
999+ £110.88
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 35mm
D 55mm
B 10mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 12.7Kn
C<sub>or</sub> 9.15kN
Axial load Kn 6.6 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 11mm
Max speed in grease 25600 rpm
Max speed in oil 38900 rpm
--- Fitting dimensions
d<sub>a min</sub> 40mm
D<sub>a max</sub> 50mm
D<sub>b max</sub> 52.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.074kg
