SKU: 7907CTRDUDMP3-NSK

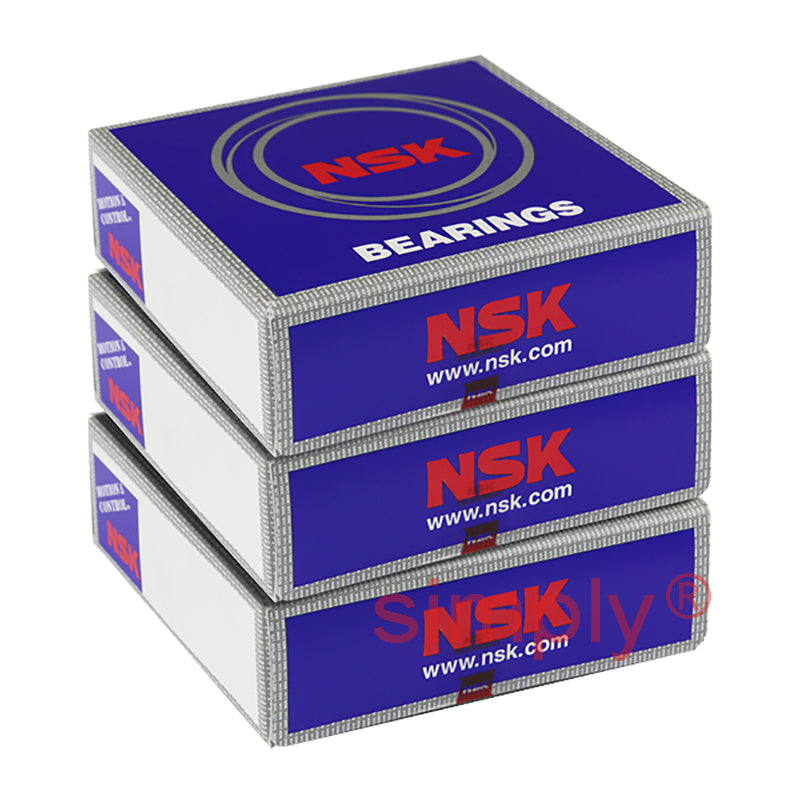

NSK 7907CTRDUDMP3 Super Precision Angular Contact Spindle Bearing 35x55x10mm (Set of 3)

NSK 7907CTRDUDMP3 Super Precision Angular Contact Spindle Bearing 35x55x10mm (Set of 3)
Regular price £355.36 ex VAT£426.43inc. VAT
Regular price Sale price £355.36 ex VAT£426.43 inc. VAT
Sale Sold out

In stock

Price Break
3+ £316.27
5+ £298.50
10+ £294.95
25+ £291.39
49+ £287.84
74+ £284.29
99+ £266.52
199+ £262.96
249+ £259.41
499+ £255.86
999+ £248.75
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 35mm
D 55mm
B 10mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 12.7Kn
C<sub>or</sub> 9.15kN
Axial load Kn 6.6 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 11mm
Max speed in grease 25600 rpm
Max speed in oil 38900 rpm
--- Fitting dimensions
d<sub>a min</sub> 40mm
D<sub>a max</sub> 50mm
D<sub>b max</sub> 52.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.222kg
