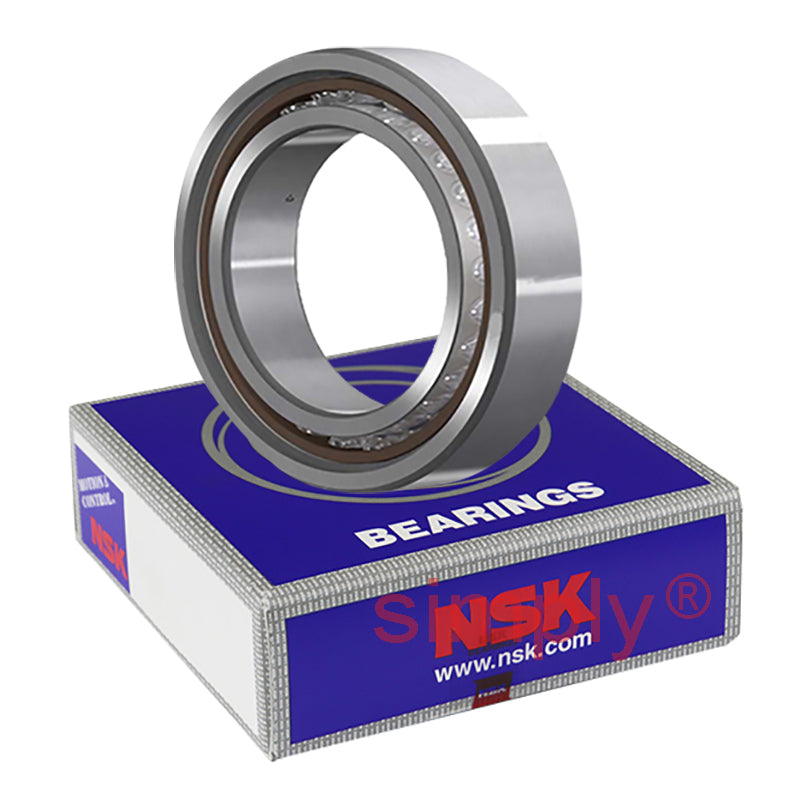

NSK 7907A5TRV1VSULP3 Super Precision Sealed Angular Contact Spindle Bearing 35x55x10mm

NSK 7907A5TRV1VSULP3 Super Precision Sealed Angular Contact Spindle Bearing 35x55x10mm
Regular price £159.04 ex VAT£190.85inc. VAT
Regular price Sale price £159.04 ex VAT£190.85 inc. VAT
Sale Sold out

In stock

Price Break
3+ £141.55
5+ £133.60
10+ £132.01
25+ £130.42
49+ £128.83
74+ £127.23
99+ £119.28
199+ £117.69
249+ £116.10
499+ £114.51
999+ £111.33
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 35mm
D 55mm
B 10mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 12Kn
C<sub>or</sub> 8.7kN
Axial load Kn 7.2 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 15.5mm
Max speed in grease 22300 rpm
Max speed in oil 33400 rpm
--- Fitting dimensions
d<sub>a min</sub> 40mm
D<sub>a max</sub> 50mm
D<sub>b max</sub> 52.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.075kg
