SKU: 7904CTRDULP3-NSK

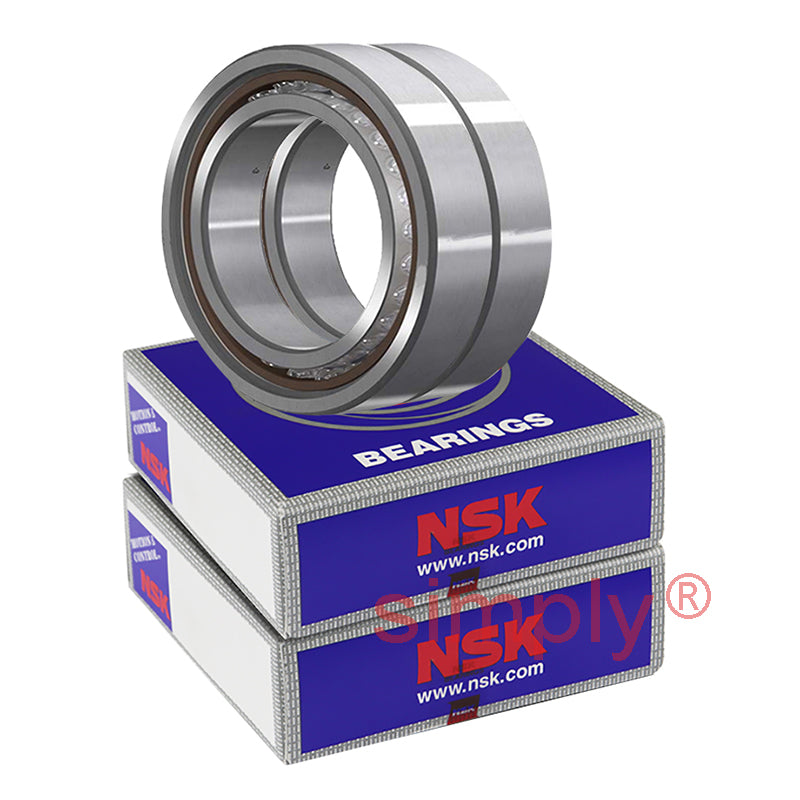

NSK 7904CTRDULP3 Super Precision Angular Contact Spindle Bearing 20x37x9mm (Set of 2)

NSK 7904CTRDULP3 Super Precision Angular Contact Spindle Bearing 20x37x9mm (Set of 2)
Regular price £195.67 ex VAT£234.80inc. VAT
Regular price Sale price £195.67 ex VAT£234.80 inc. VAT
Sale Sold out

In stock

Price Break
3+ £174.15
5+ £164.36
10+ £162.41
25+ £160.45
49+ £158.49
74+ £156.54
99+ £146.75
199+ £144.80
249+ £142.84
499+ £140.88
999+ £136.97
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 20mm
D 37mm
B 9mm
r<sub>min</sub> 0.3mm
r1<sub>min</sub> 0.15mm
--- Loads angles and speeds
C<sub>r</sub> 7.3Kn
C<sub>or</sub> 4.25kN
Axial load Kn 3.2 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 14.9
Effective diameter 8.3mm
Max speed in grease 40400 rpm
Max speed in oil 61500 rpm
--- Fitting dimensions
d<sub>a min</sub> 22.5mm
D<sub>a max</sub> 34.5mm
D<sub>b max</sub> 35.8mm
r<sub>a max</sub> 0.3mm
r<sub>b max</sub> 0.15mm
Weight 0.072kg
