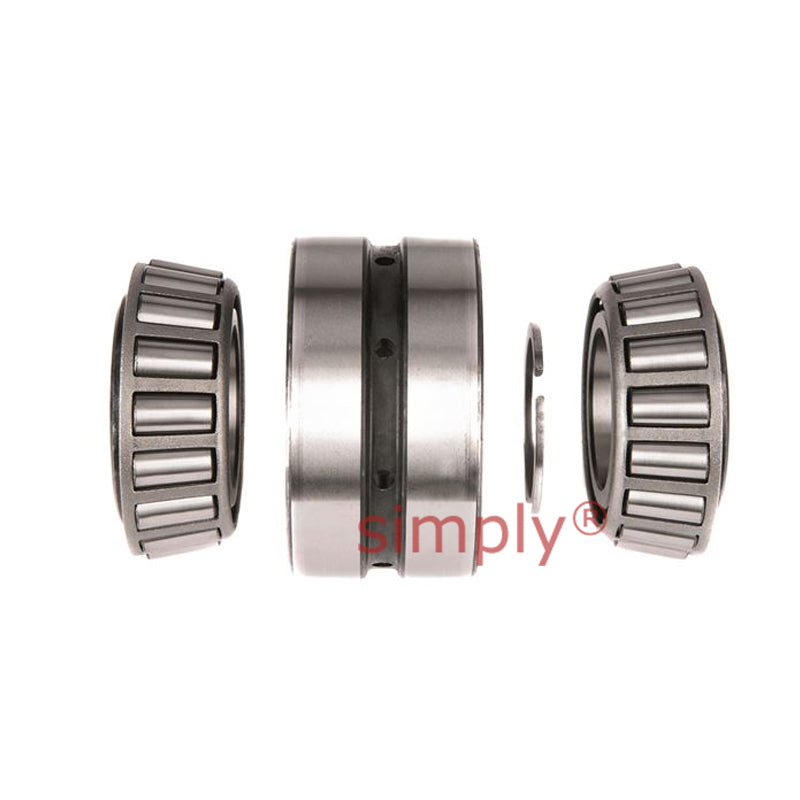

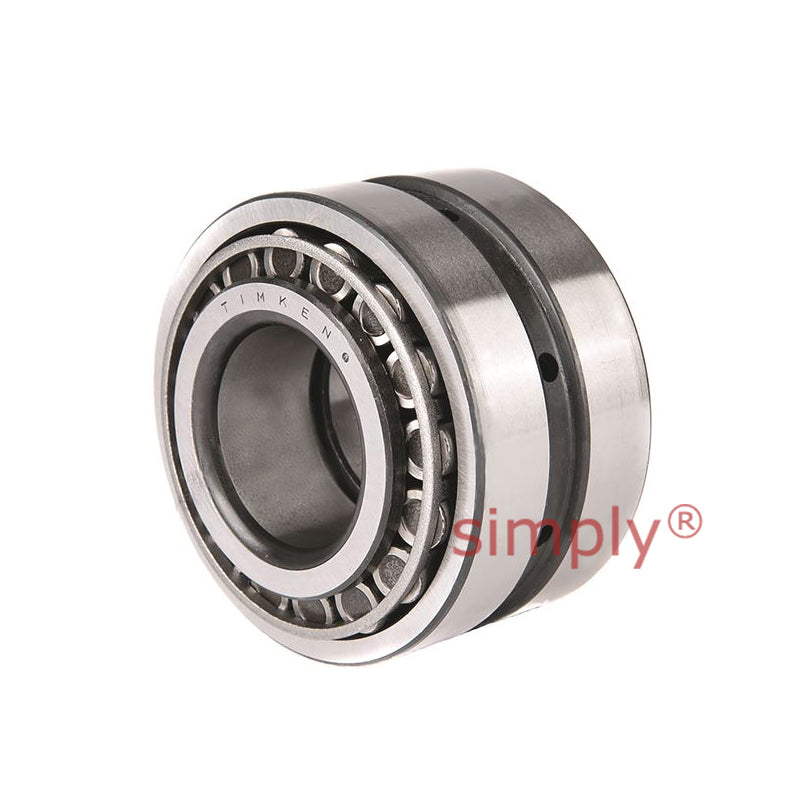

Timken 759/752D/X8S759 TDO Double Outer Race Taper Roller Bearing 3.5x6.375x4.125x3.375 inch
Timken 759/752D/X8S759 TDO Double Outer Race Taper Roller Bearing 3.5x6.375x4.125x3.375 inch
Regular price
£1,408.90
ex VAT£1,690.68inc. VAT
Regular price
Sale price
£1,408.90
ex VAT£1,690.68
inc. VAT
In stock
Price Break
2+
£1,338.46
5+
£1,268.01
10+
£1,197.57
15+
£1,127.12
20+
£1,098.94
30+
£1,070.76
50+
£929.87
Couldn't load pickup availability
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 88.90mm = 3.5 inch
- Outside Diameter:
- 161.93mm = 6.375 inch
- Width:
- 104.78mm = 4.125 inch
Technical
Technical
| d | 88.9mm = 3.5 inch |
|---|---|
| D | 161.925mm = 6.375 inch |
| T | 104.775mm = 4.125 inch |
| C | 85.725mm = 3.375 inch |
| Dynamic (1) C1 | 528000N |
| Factors (5) e | 0.34 |
| Factors (5) Y1 | 1.98 |
| Factors (5) Y2 | 2.95 |
| Dynamic (2) C90 | 78500N |
| Dynamic (2) Ca90 | 45900N |
| Dynamic (2) C90(2) | 137000N |
| Factors (5) K | 1.71 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 106mm = 4.17 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 150mm = 5.91 inch |
| G1 | 177 |
| G2 | 29.4 |
| Cg | 0.0945 |
