SKU: 7224BCBM-SKF

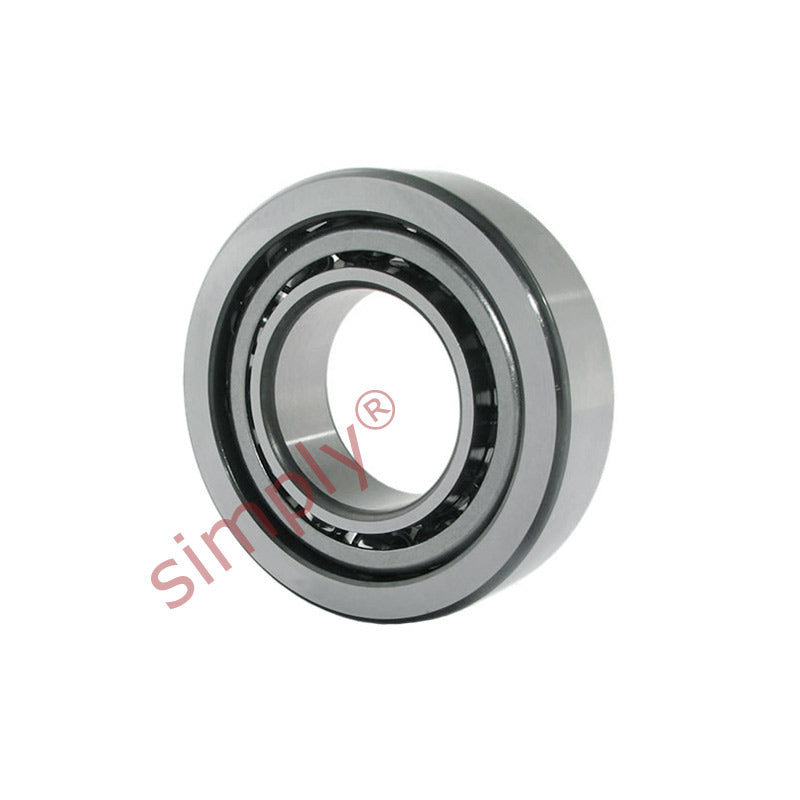

SKF 7224BCBM Single Row Angular Contact Ball Bearing 120x215x40mm
SKF 7224BCBM Single Row Angular Contact Ball Bearing 120x215x40mm
Regular price
£630.11
ex VAT£756.13inc. VAT
Regular price
Sale price
£630.11
ex VAT£756.13
inc. VAT
Equivalent to: 7224BCBM
In stock
Price Break
10+
£560.80
19+
£529.29
29+
£522.99
39+
£516.69
49+
£510.39
74+
£504.09
99+
£472.58
199+
£466.28
249+
£459.98
499+
£453.68
999+
£441.08
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7224BCBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7224BCBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| B | 40mm |
| Dynamic load Cr | 165 kN |
| Static load Cor | 163 kN |
| Fatigue load limit Pu | 5.3 kN |
| Reference speed | 3400 rpm |
| Limit speed | 3600 rpm |
| Weight | 5.89 kg |
| d1 | 157mm |
| d2 | 138.6mm |
| D1 | 179.4mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.1mm |
| a | 90mm |
| da min | 132mm |
| Da max | 203mm |
| Db max | 208mm |
| ra max | 2mm |
| rb max | 1mm |
