SKU: 7209A5SN24TRDULP3-RHP

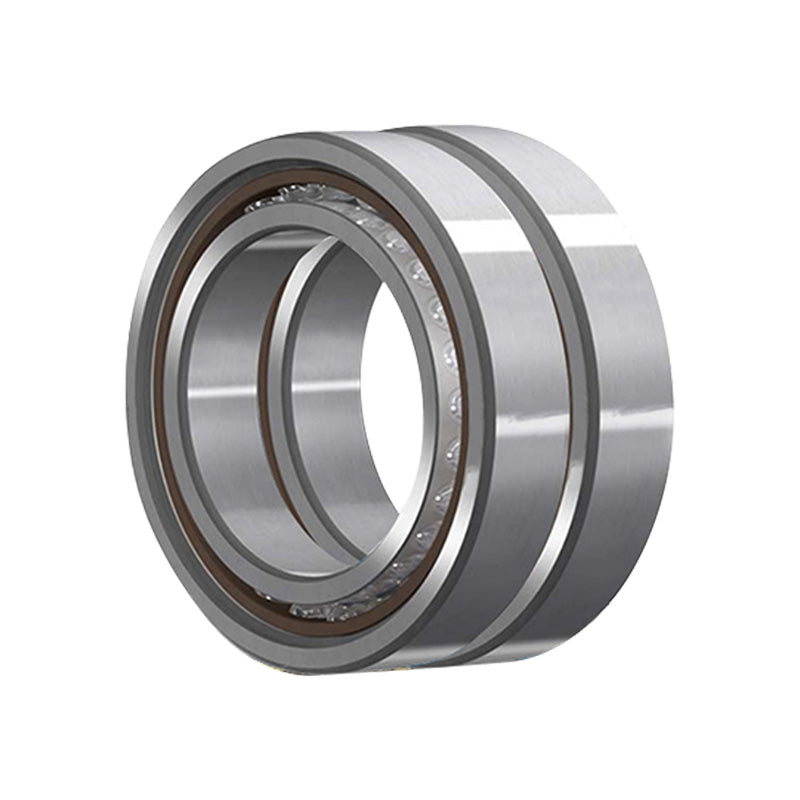

RHP 7209A5SN24TRDULP3 Super Precision Angular Contact Spindle Bearing 45x85x19mm (Set of 2)

RHP 7209A5SN24TRDULP3 Super Precision Angular Contact Spindle Bearing 45x85x19mm (Set of 2)
Regular price £965.61 ex VAT£1,158.73inc. VAT
Regular price Sale price £965.61 ex VAT£1,158.73 inc. VAT
Sale Sold out

In stock

Price Break
3+ £859.40
5+ £811.12
10+ £801.46
25+ £791.80
49+ £782.15
74+ £772.49
99+ £724.21
199+ £714.55
249+ £704.90
499+ £695.24
999+ £675.93
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 45mm
D 85mm
B 19mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> -41Kn
C<sub>or</sub> -27.6kN
Axial load Kn 27.7 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 24.7mm
Max speed in grease 20000 rpm
Max speed in oil 30000 rpm
--- Fitting dimensions
d<sub>a min</sub> 52mm
D<sub>a max</sub> 78mm
D<sub>b max</sub> 80mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 0.674kg
